CHENYUE CYCM50 Ultra-Precision Worm Drive Gearbox 8 to 15 Arc Minute Accuracy, High Torque Precision Worm Gear, Compact & Durable Design

Product Description

Key features

1. Model No: CYCM 050

2. Accuracy: Less than 2 Arc minutes super precision
3. Factory outlet price and provide outgoing video inspection of factory

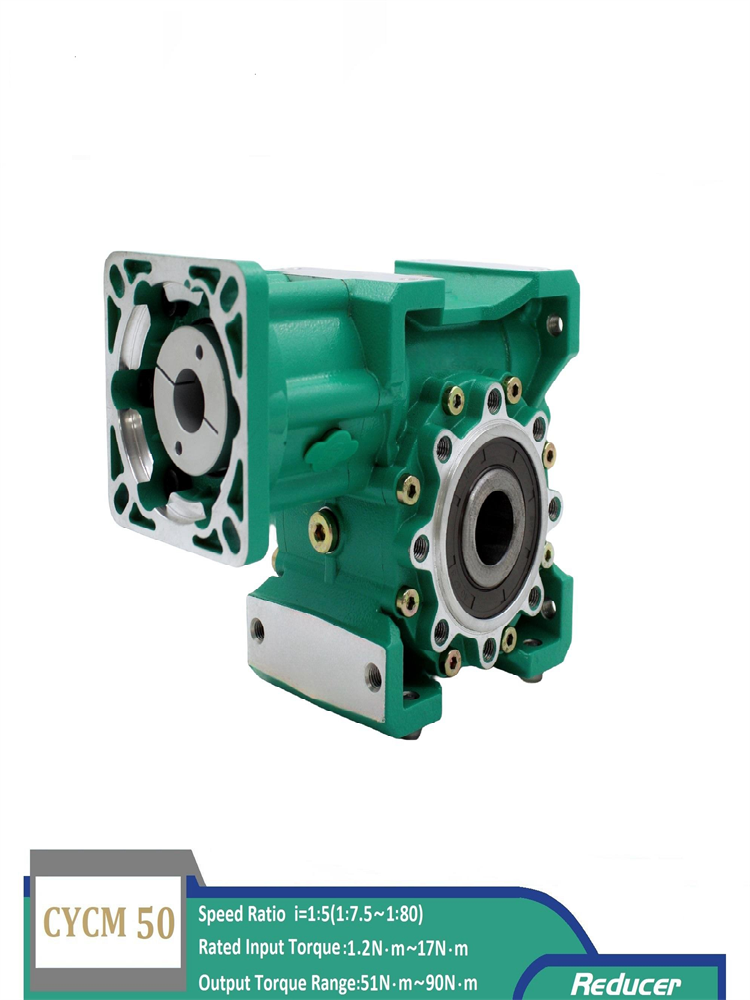

4. Speed ratio range : 5:1,7.5:1,10:1,15:1,20:1,25:1,30:1,40:1,50:1,60:1 ,80:1

5. Input size: 14 19 20 22 mm

6. Output hole with key way 25 mm

7. Output locking disc hole: 25 mm

8. Rated input Torque: 1.2 N.m---17 N.m

9. Output Torque range: 51 N.m--90 N.m

10. Rated input motor power :0.37 kw--3.2 kW

11. Input Flange:85*85 mm

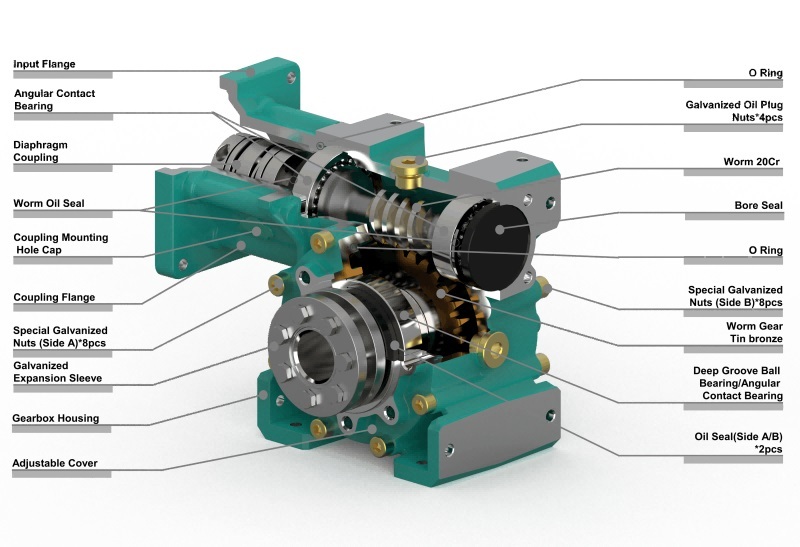

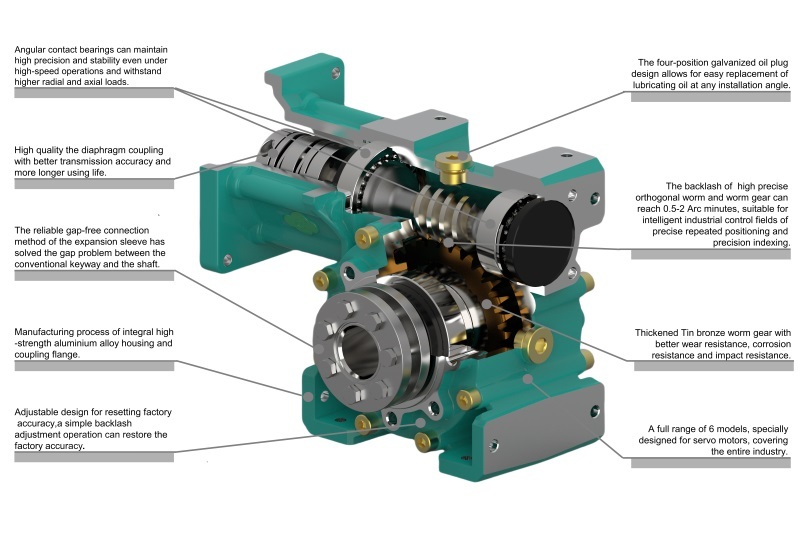

12. Die cast aluminium alloy housing

13. Worm wheel adopts high quality Tin bronze

14. Certification :RoHS/CE/IAF/CNAS/ISO9001/ISO45001/ISO14001

15. Mounting orientation: B3  B6  B7  B8  V5  V6

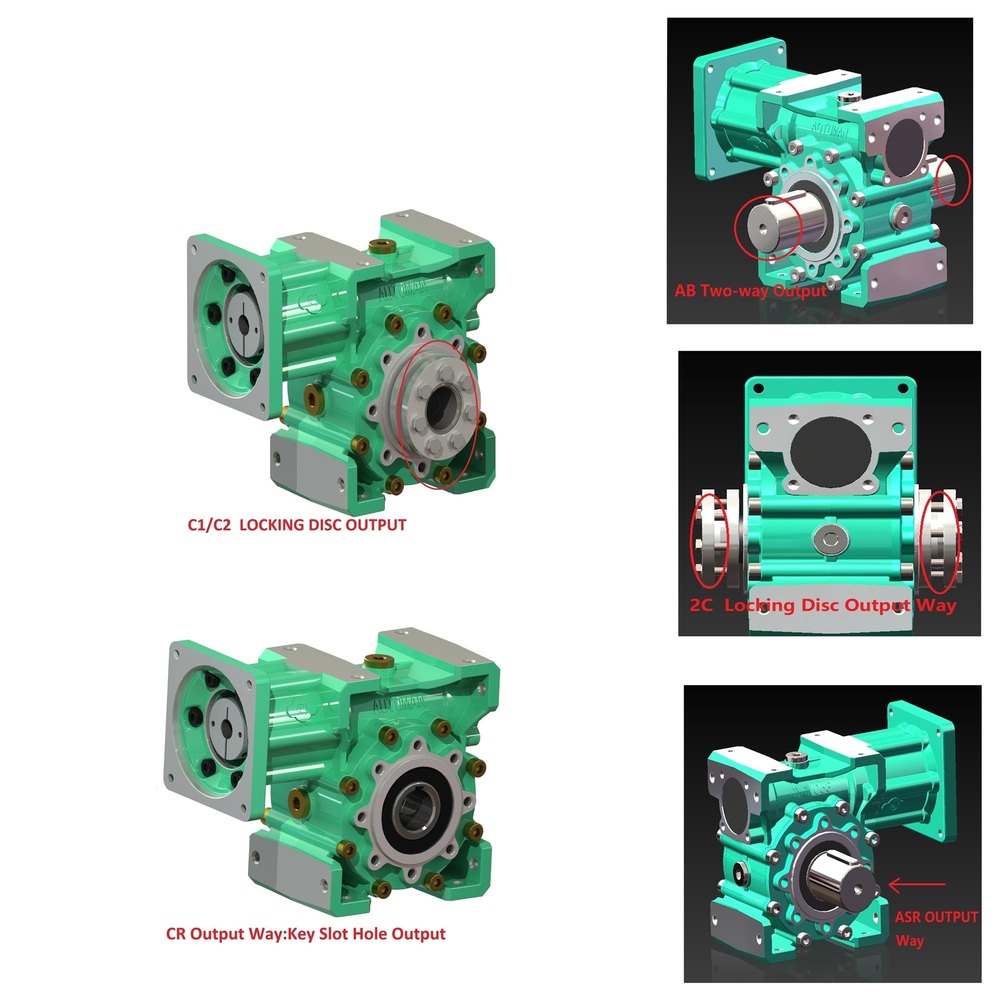

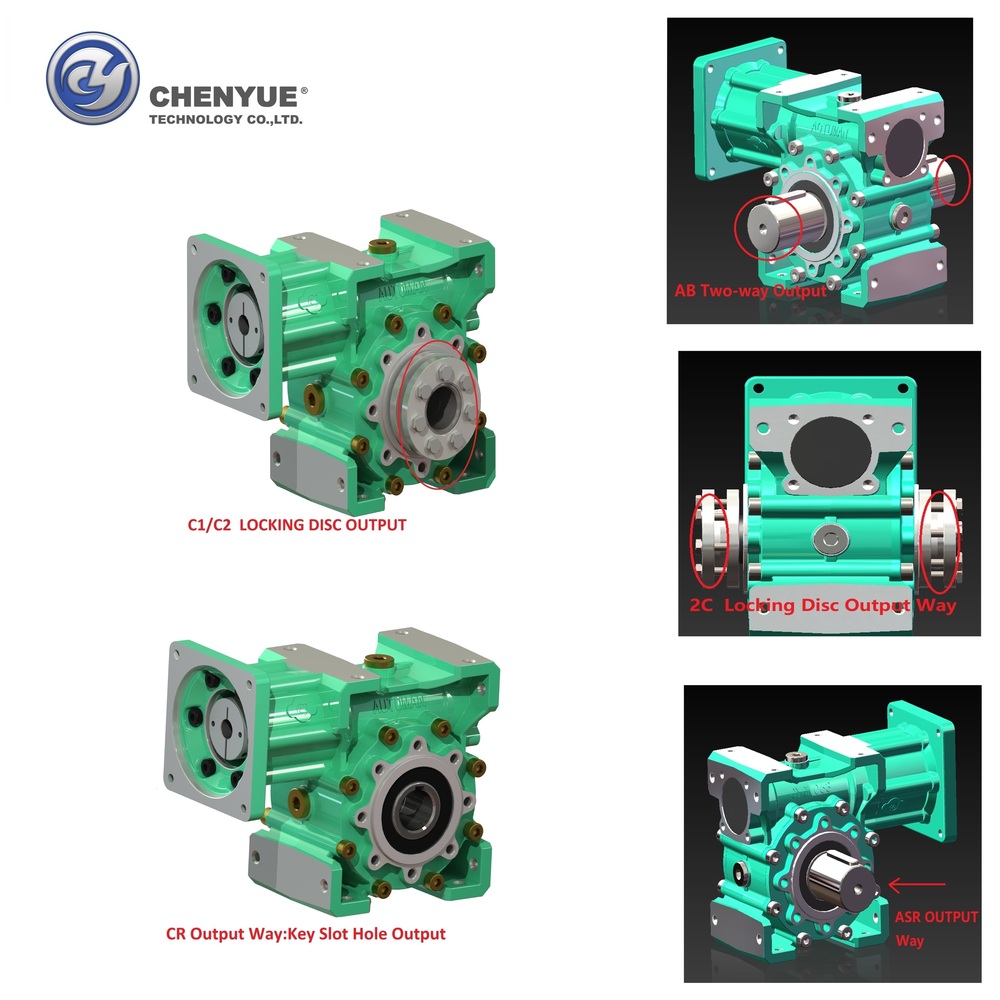

16. With 7 different output ways,C1,C2 CR,2C,ASL,ASR,AB,

17. Can be customized according to customer needs
18. Delivery time:15 days
19. Approximate gross weight 7 KgsNW about 4.6 kgs
20.Built-in fully synthetic lubricant oil and maintenance-free,no need change oil for whole life

21.Low temperature rise

FAQs of CYCM50 High Precision 0.5-2 Arc Minute Worm Gearbox:

Q: What material is the CYCM50 High Precision Worm Gearbox made of?

Q: What is the gearing arrangement of the CYCM50 Worm Gearbox?

Q: What level of precision does the gearbox offer?

Q: What is the efficiency of the CYCM50 Worm Gearbox?

Q: What type of industrial applications is the CYCM50 gearbox suitable for?
