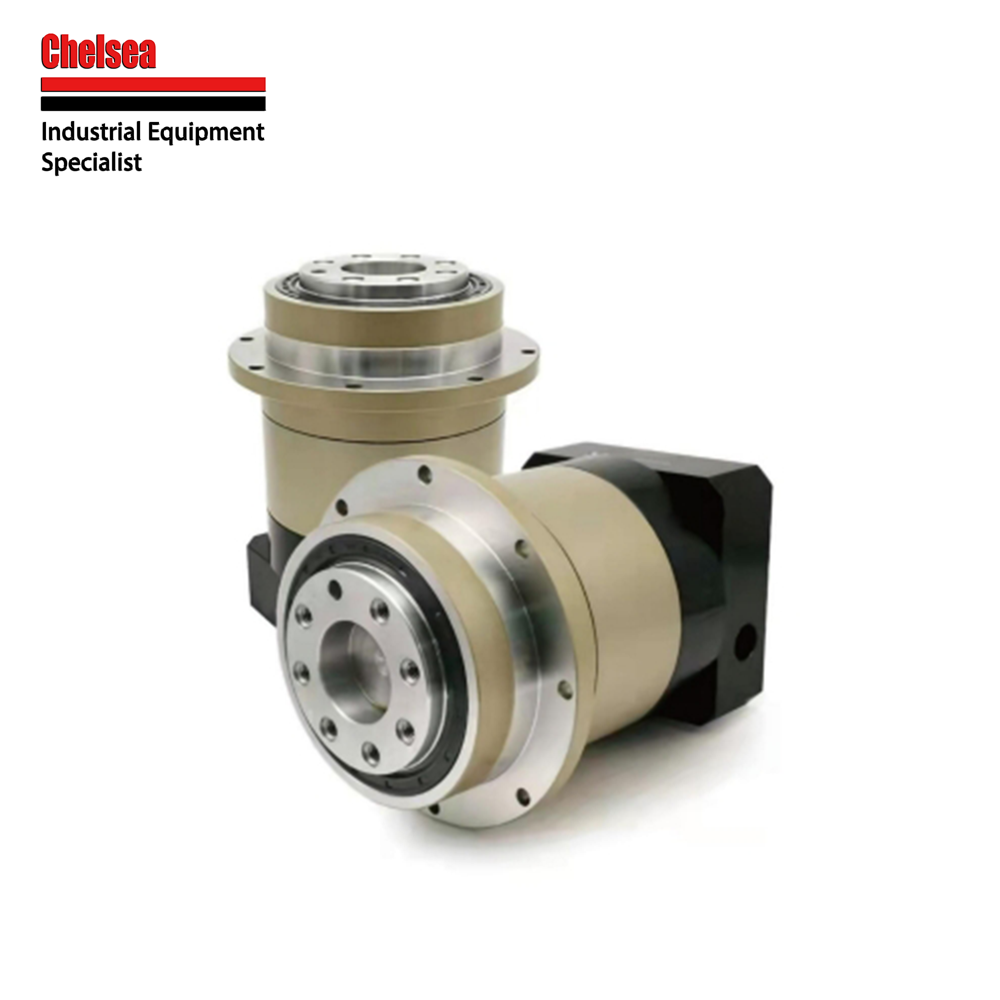

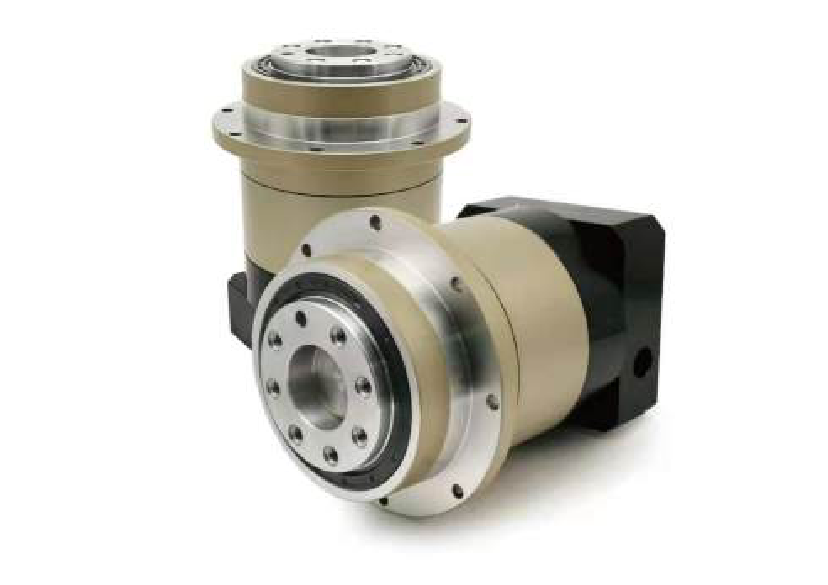

PHF60 Single Stage Helical Planetary Gearbox 4 to 1000 Ratio
88.99 USD ($)/Piece
Product Details:
- Usage Industrial
- Material Other
- Processing Type Die Casting
- Size 125*126*100*
- Gear Tooth Profile Helical Gear
- Height 126 Millimeter (mm)
- Product Type Planetary gearbox, PHF60
- Click to View more
X
PHF60 Single Stage Helical Planetary Gearbox 4 to 1000 Ratio Price And Quantity
- 1 Piece
- 88.99 USD ($)/Piece
- 88.99 - 123.99 USD ($)/Piece
PHF60 Single Stage Helical Planetary Gearbox 4 to 1000 Ratio Product Specifications
- 125*126*100*
- 126 Millimeter (mm)
- See Picture
- 3.22 Kilograms (kg)
- Industrial
- 55 N-m
- 125 Millimeter (mm)
- High
- 100 Millimeter (mm)
- Helical Gear
- Die Casting
- 5000 RPM
- Planetary
- Planetary gearbox, PHF60
- Other
- 50-1250 RPM
PHF60 Single Stage Helical Planetary Gearbox 4 to 1000 Ratio Trade Information
- Qingdao,Shanghai,Lianyungang
- Paypal, Delivery Point (DP), Telegraphic Transfer (T/T), Letter of Credit (L/C)
- 30000 Piece Per Month
- 3 Days
- Contact us for information regarding our sample policy
- Carton
- South America, Eastern Europe, Western Europe, Middle East, Africa, Asia, Australia, Central America, North America
- All India
- RoHS/CE/IAF/CNAS/ISO9001/ISO45001/ISO14001
Product Description

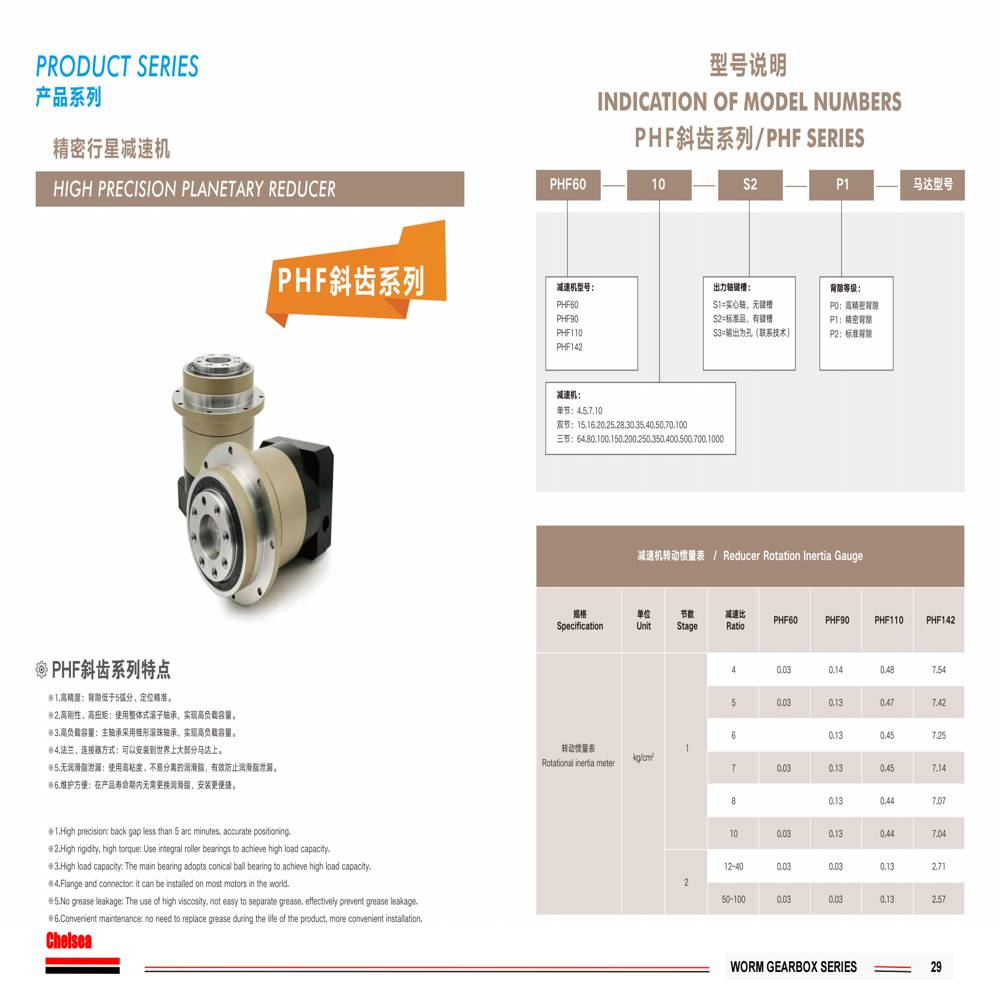

Key Features:
-
High precision with less than 5 arc-minutes backlash for accurate positioning.
-
High rigidity and torque transmission due to integral roller bearings.
-
Conical ball bearings support heavy radial and axial loads.
-
Universal flange design fits most international motor standards.
-
Special high-viscosity grease prevents separation and leakage.
-
Maintenance-free operation with no need for grease replacement.
-
Hardened and ground gears ensure long service life.
-
Corrosion-resistant housing protects internal components.
-
Input size:14mm
-
Out put size: 20mm
-

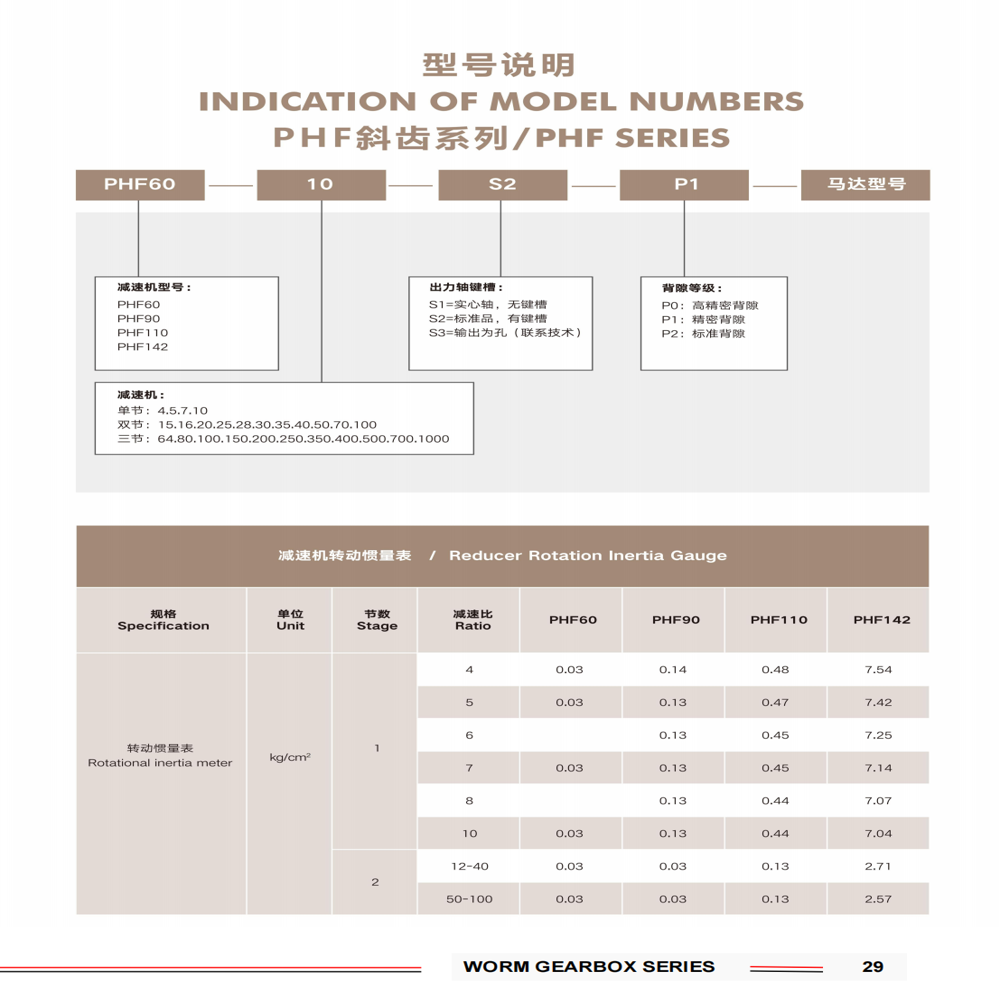

Rotational Inertia:0.03kgcm
-
Ratio: 4:1,100:1
-
Delivery Time: 1-3 Days
Key Benefits:
-
Ensures precise and repeatable positioning in automation systems.
-
Handles high torque demands without performance loss.
-
Supports heavy loads in both radial and axial directions.
-
Simplifies motor integration with universal mounting compatibility.
-
Reduces downtime with permanent lubrication and no maintenance.
-
Durable construction extends lifespan in harsh environments.
Tip:
- A 12-month manufacturer's warranty applies to all planetary gear reducers.
- Warranty coverage activates upon the purchase date documented in the sales receipt.
- Proof of purchase in the form of the original invoice is mandatory for warranty claims.
- Services performed after warranty expiration require payment of applicable fees.
- Units no longer under warranty qualify for our paid repair services.
- Our technical support team provides continuous assistance regardless of warranty status.
- If you need special customization or have requirements for delivery time, please contact Sales manager email: chenyuetech@gmail.com, Watsapp: +86 132 7517 8089
Advanced Helical Planetary Design
The PHF60 gearbox utilizes a helical gear tooth profile within a planetary gearing arrangement. This combination enhances operational efficiency and delivers smooth, quiet performance, ideal for industrial machinery where reliability and steady torque are essential demands.
Efficient Performance for Industrial Demands
Built to withstand rigorous workloads, the PHF60 offers high efficiency through precision die-cast construction. With a broad speed ratio range and capacity for fast input speeds, this gearbox is suited to applications requiring dependable torque output and consistent speed control.
FAQ's of PHF60 Single Stage Helical Planetary Gearbox 4 to 1000 Ratio:
Q: How is the PHF60 Helical Planetary Gearbox typically installed in industrial applications?
A: The PHF60 gearbox is designed for easy integration with various industrial systems. Installation involves aligning and securing the gearbox to the machinery using the appropriate mounting fixtures, ensuring proper coupling with the input shaft and verifying position for optimal gear mesh.Q: What process is involved in manufacturing the PHF60 Gearbox?
A: The PHF60 gearbox is produced through die casting, which results in highly precise and durable components. This process ensures tight tolerances, contributing to the gearbox's overall performance, longevity, and reliability in industrial environments.Q: When should the PHF60 Gearbox be used over other types of gearboxes?
A: The PHF60 is ideal when high efficiency, compact dimensions, and moderate to high torque output are required. It is most beneficial in machinery needing precise speed reduction and positioning, such as conveyors, automation systems, and robotics.Q: Where can the PHF60 Single Stage Planetary Gearbox be sourced?
A: This gearbox is manufactured and supplied in China and is typically available through authorized industrial equipment distributors, direct manufacturer contacts, or specialized suppliers focusing on power transmission solutions.Q: What benefits does the helical gear tooth profile provide?
A: The helical gear tooth profile results in smoother and quieter operation, reduced vibration, and increased load-carrying capacity compared to straight-cut gears, making the PHF60 ideal for demanding industrial uses.Q: How does the high efficiency of the PHF60 Gearbox contribute to energy savings?
A: Because the gearbox is engineered for high efficiency, it minimizes power losses, which leads to lower operational energy consumption and decreased heat generation-offering cost savings over time and reducing wear on mechanical components.Tell us about your requirement
