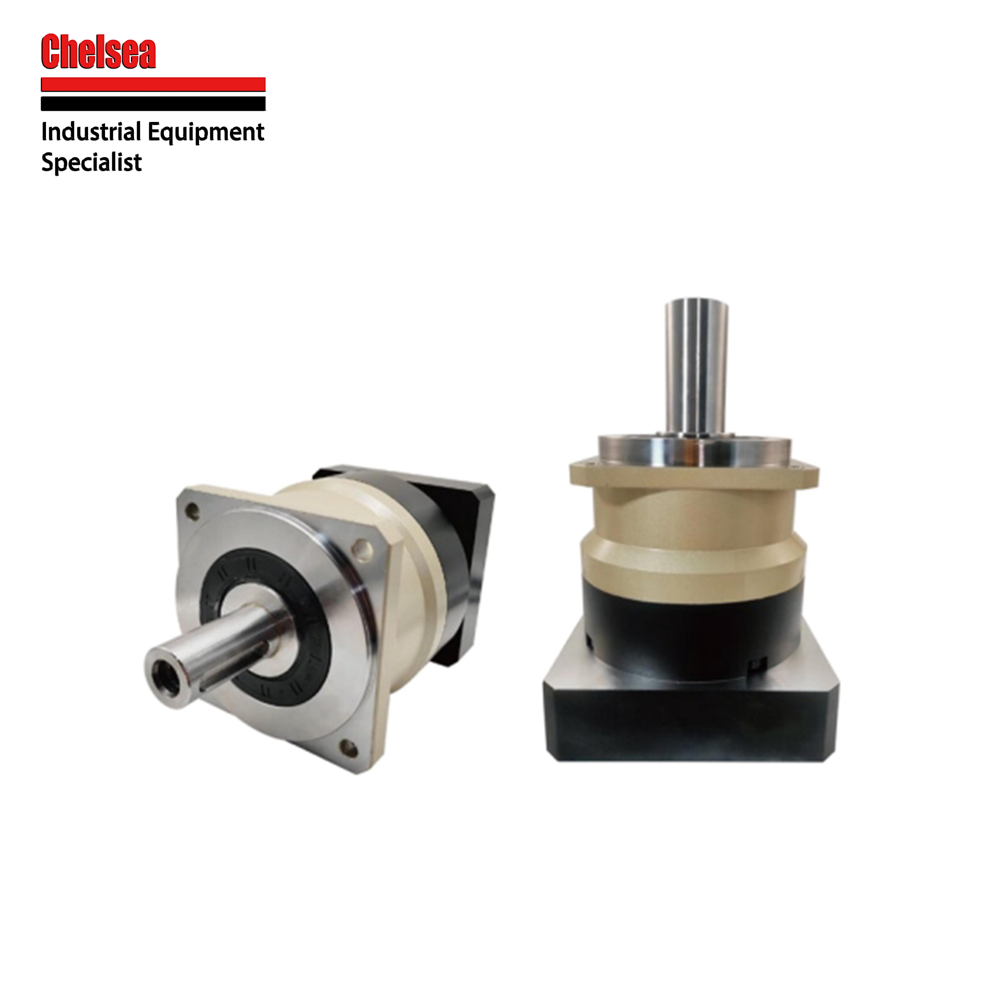

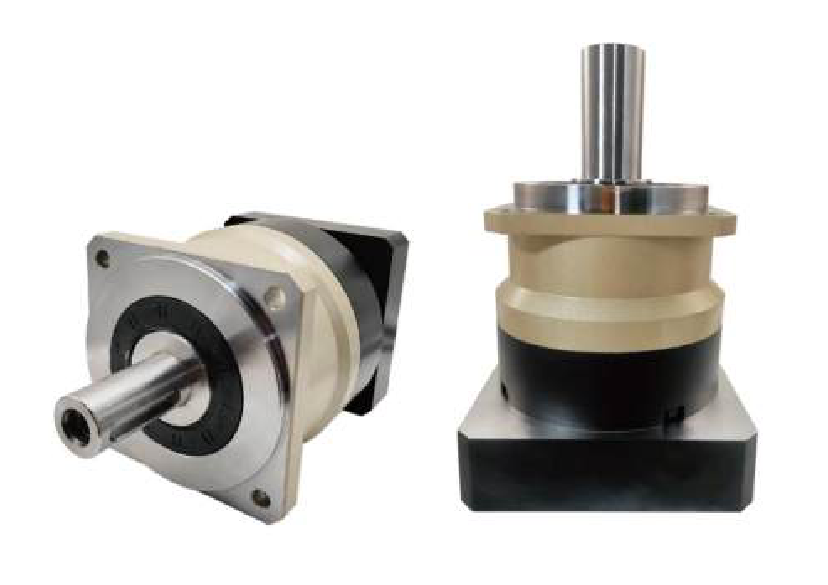

PHL90 Series L1 Planetary Gearbox 19mm Input Shaft 22mm Output Shaft

Product Description

Key Features:

1. High precision with less than 5 arc-minutes backlash for accurate positioning.

2. Integral roller bearings provide high rigidity and torque transmission.

3. Conical ball bearings support heavy radial and axial loads.

4. Universal flange design ensures compatibility with most global motor standards.

5. High-viscosity grease prevents separation and eliminates leakage.

6. Maintenance-free operation with lifetime lubrication.

7. Hardened and ground gears deliver extended service life.

8. Corrosion-resistant housing protects components in harsh environments.

9. Input size: 19mm

10. Output size:22mm

11. Rotational Inertia:0.03-0.16kgcm

12. Ratio Range:3:1,100:1

13. Delivery time: 1-3 days

Key Benefits:

1. Ensures repeatable precision in automated positioning systems.

2. Handles peak torque demands without performance loss.

3. Supports combined heavy loads in both radial and axial directions.

4. Simplifies motor integration with standardized mounting.

5. Eliminates maintenance costs with permanent lubrication.

6. Durable construction reduces downtime in industrial applications.

Precision Engineering for Demanding Applications

Designed with a planetary gearing arrangement, the PHL90 Series L1 delivers high torque output with exceptional efficiency. The gearbox supports continuous operation under rigorous industrial conditions, making it ideal for automation, material handling, and machinery sectors. Thanks to its meticulous die-casting construction, it guarantees reliable performance and an extended lifespan.


Compact Size, Powerful Output

Despite its compact size, the PHL90 achieves impressive output torque and speed, optimizing space without compromising on capability. The 19mm input and 22mm output shafts ensure versatile integration with various motor and machine setups. Its robust housing and streamlined profile make it easy to maintain in diverse industrial environments.
