PLX142 Heavy Duty Planetary Gearbox High Torque Industrial Power Transmission Solution for Demanding Applications
193.99 USD ($)/Piece
Product Details:
- Usage Industrial
- Gear Type Spur Gears
- Material Other
- Size 338*220*220
- Height 220 Millimeter (mm)
- Gear Tooth Profile Other
- Gearing Arrangement Planetary
- Click to View more
X
PLX142 Heavy Duty Planetary Gearbox High Torque Industrial Power Transmission Solution for Demanding Applications Price And Quantity
- 193.99 USD ($)/Piece
- 1 Piece
PLX142 Heavy Duty Planetary Gearbox High Torque Industrial Power Transmission Solution for Demanding Applications Product Specifications
- Planetary
- 220 Millimeter (mm)
- See Picture
- 35-1166 RPM
- High
- 27.5 Kilograms (kg)
- Industrial
- 338 Millimeter (mm)
- 338*220*220
- 3500 RPM
- PLX142 Planetary gearbox
- Other
- 320-490 N-m
- Spur Gears
- 220 Millimeter (mm)
- Other
PLX142 Heavy Duty Planetary Gearbox High Torque Industrial Power Transmission Solution for Demanding Applications Trade Information
- Qingdao,Shanghai,Lianyungang
- Telegraphic Transfer (T/T), Paypal, Delivery Point (DP), Letter of Credit (L/C)
- 30000 Piece Per Month
- 3 Days
- No
- Contact us for information regarding our sample policy
- Carton
- Central America, North America, South America, Eastern Europe, Western Europe, Asia, Australia, Africa, Middle East
- All India
- RoHS/CE/IAF/CNAS/ISO9001/ISO45001/ISO14001
Product Description
Key Features:-
The PLX142 planetary gearbox delivers exceptional torque capacity for heavy industrial machinery.
-
Its precision-engineered helical gears ensure smooth and efficient power transmission.
-
The rugged cast iron housing provides superior protection in harsh operating environments.
-
Multiple reduction stages offer optimal speed and torque conversion.
-
Integrated cooling fins maintain stable temperatures during continuous operation.
-
Sealed bearings and permanent lubrication guarantee maintenance-free performance.
-
Standard mounting options allow easy integration with various motor types.
-
Input size: 35mm
-
Output size: 40mm
-

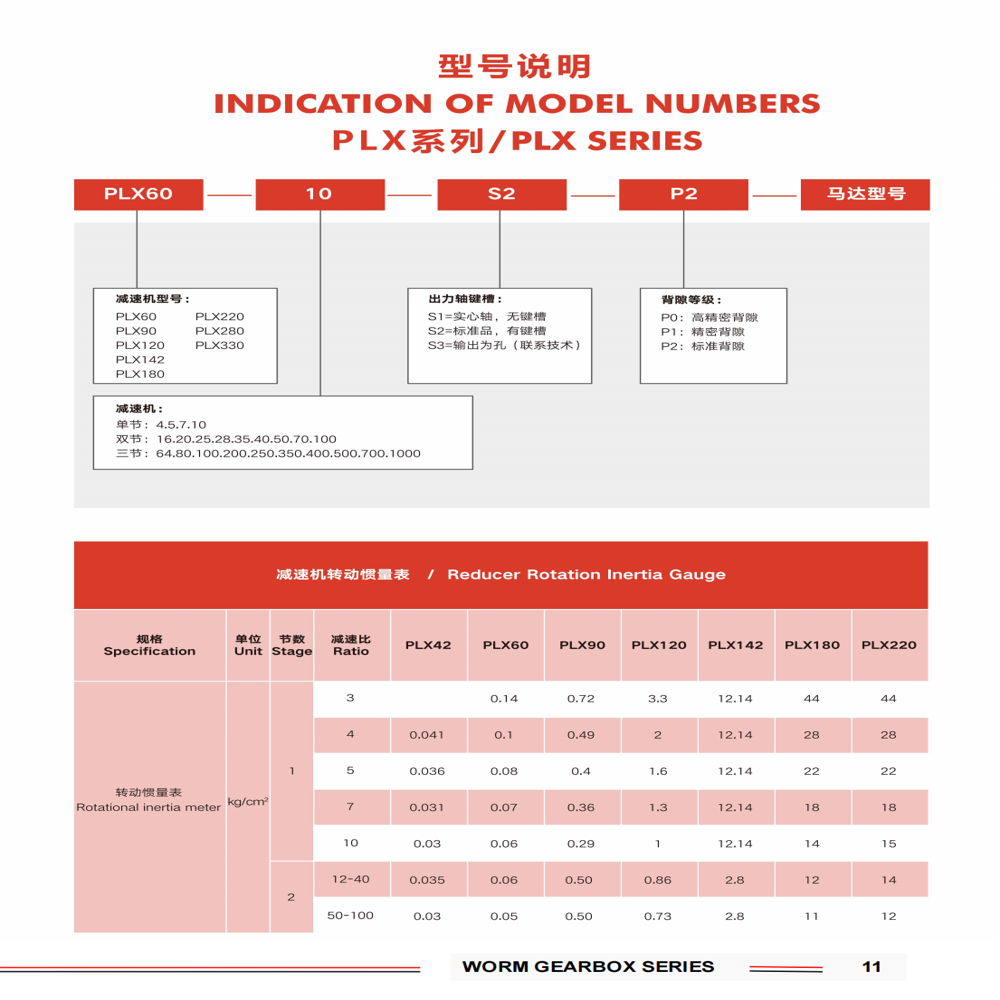

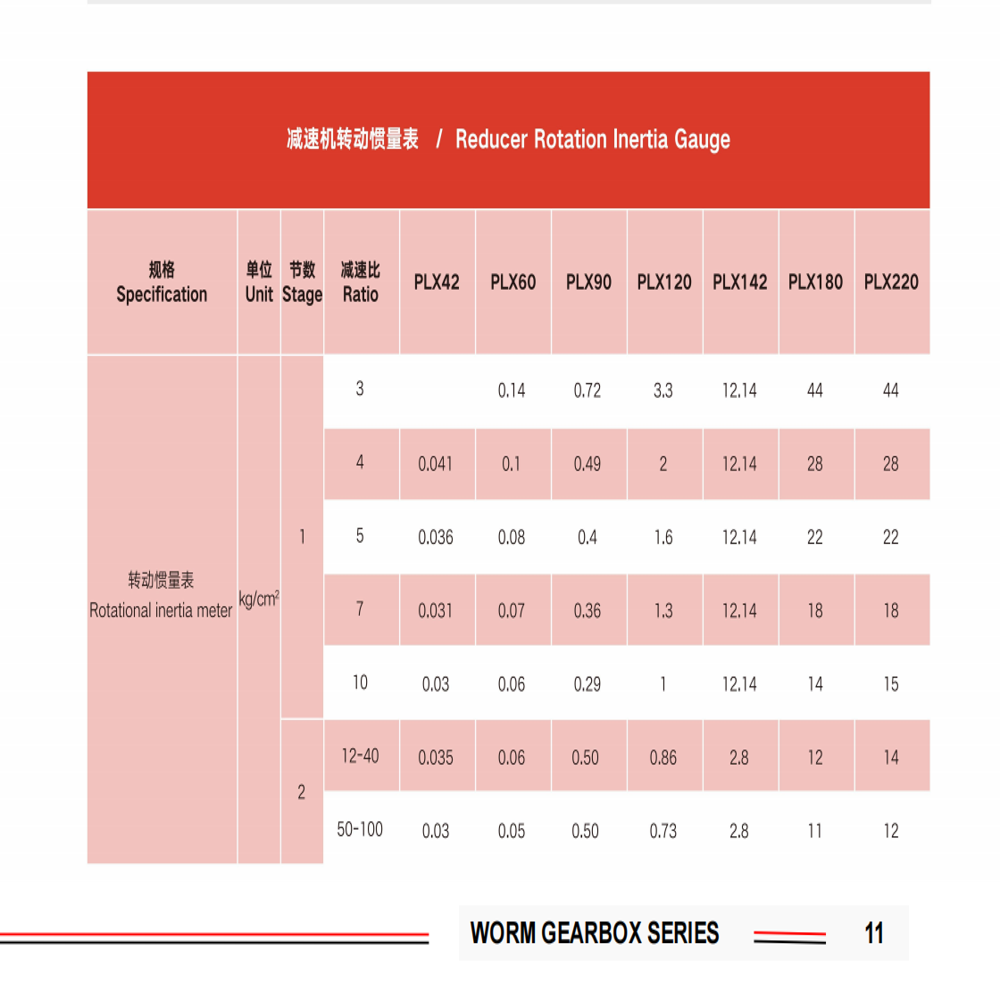

Rotational Inertia:2.8-12.4kgcm
-
Delivery Time: 1-3 Days
-
Ratio Range:3:1,100:1
Key Benefits:
-
Maximizes equipment uptime with reliable, industrial-grade construction.
-
Reduces energy consumption through high-efficiency power transmission.
-
Handles extreme loads with durable, wear-resistant components.
-
Simplifies installation with universal mounting compatibility.
-
Lowers total cost of ownership with minimal maintenance requirements.
Tip:
- The Gear Planetary Reducer is warranted for one year.
- The starting date of the warranty period is subject to the date of the product invoice, please present the invoice when repairing.
- Beyond the warranty period or does not belong to the free warranty products, the company's maintenance center is still dedicated to serve you.
- If you need special customization or have requirements for delivery time, please contact Sales manager email: chenyuetech@gmail.com, Wattsapp: +86 132 7517 8089
Engineered for High-Torque Applications
The PLX142 planetary gearbox is specifically designed to handle demanding industrial scenarios that require reliable, high-torque performance. Its strong output capabilities and efficient, spur gear construction make it perfect for powering heavy-duty machinery, ensuring consistent operation even under continuous load.
Compact Yet Powerful Design
Despite its heavy-duty performance, the PLX142 boasts a compact footprint with dimensions of 338x220x220 mm and a manageable weight. This allows for easy integration into various industrial setups, optimizing space without compromising on torque or efficiency. The robust housing protects internal components for long-term use.
Optimized Power Transmission
The advanced planetary gearing system of the PLX142 ensures efficient distribution of input power to output torque. Designed to operate smoothly at input speeds up to 3500 RPM and output speeds from 35 to 1166 RPM, it guarantees reliable transmission with minimal energy loss, maximizing operational efficiency.
FAQ's of PLX142 Heavy Duty Planetary Gearbox High Torque Industrial Power Transmission Solution for Demanding Applications:
Q: How should the PLX142 gearbox be installed for optimal performance?
A: The PLX142 gearbox should be securely mounted on a stable, vibration-free platform, ensuring precise alignment between the input and output shafts. Proper installation will maximize efficiency and extend the gearbox's operational life.Q: What are the primary industrial applications suitable for the PLX142 gearbox?
A: This gearbox is ideal for use in heavy-duty power transmission scenarios, including manufacturing, material handling, automation systems, and other demanding machinery that require sustained high torque and reliability.Q: When is it recommended to use a planetary gearbox like the PLX142 instead of other gear types?
A: The PLX142 is best suited for applications that demand high torque output within a compact system. Its planetary arrangement offers enhanced load distribution and efficiency compared to traditional gearboxes, making it preferable in high-load, continuous-duty environments.Q: Where can I purchase or source the PLX142 Heavy Duty Planetary Gearbox?
A: The PLX142 is manufactured and supplied in China. Interested buyers can contact authorized manufacturers or suppliers for detailed purchasing information and availability.Q: What is the advantage of the planetary gearing arrangement in the PLX142 model?
A: The planetary gearing in the PLX142 ensures superior load sharing, higher efficiency, and compact size compared to other gear arrangements. This design leads to increased reliability and smoother power transmission.Q: How does the high efficiency of the PLX142 benefit industrial operations?
A: High efficiency reduces energy consumption and operational costs, while minimizing heat and wear. This leads to lower maintenance requirements, improved output, and longer equipment life.Q: What is the process for routine maintenance on the PLX142 gearbox?
A: Routine maintenance involves checking lubricant levels, inspecting for leaks, and ensuring alignment and fastener tightness. Scheduled maintenance helps maintain optimal gearbox efficiency and prevents unexpected downtime.Tell us about your requirement
