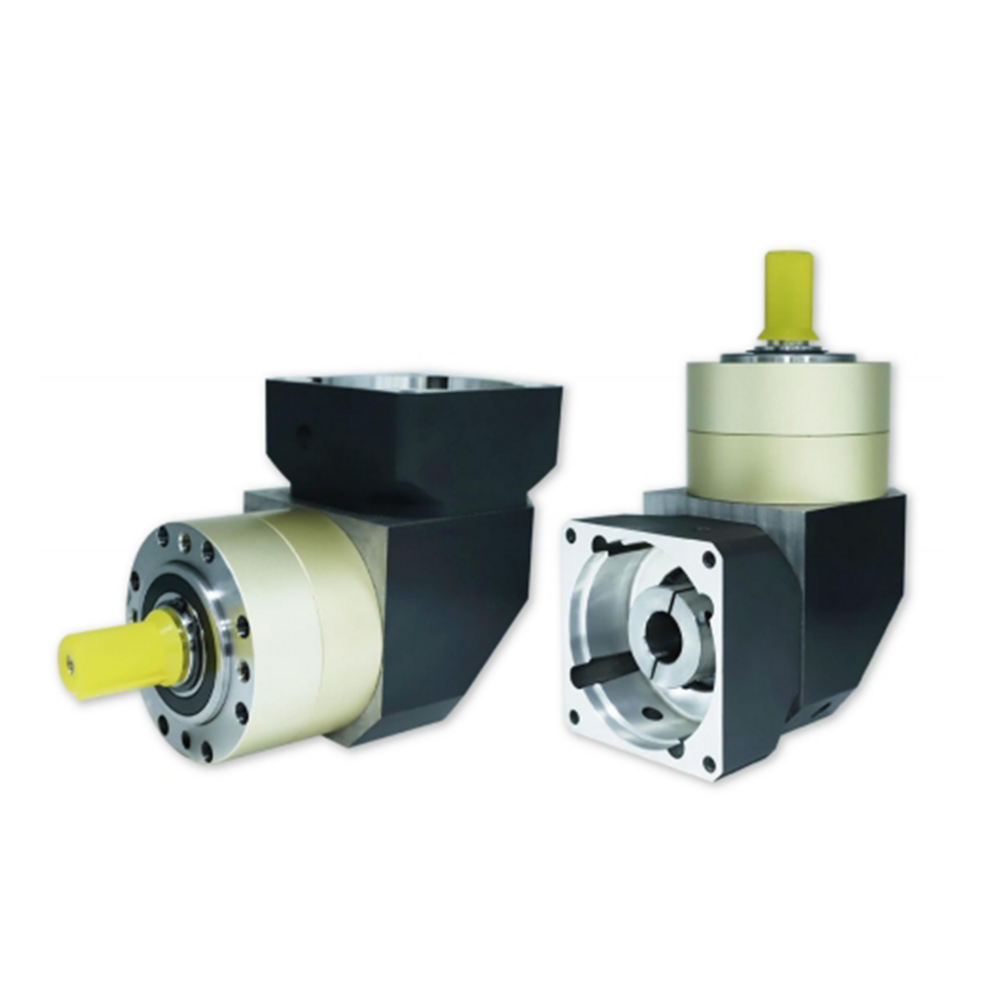

Precision Planetary Gearbox ZPLE120 L1 L2 4:1 and 100:1 Ratios
Product Details:
- Gear Type Spur Gears
- Usage Industrial
- Material Other
- Size 315*230*160
- Processing Type Die Casting
- Gear Tooth Profile Other
- Height 230 Millimeter (mm)
- Click to View more
Precision Planetary Gearbox ZPLE120 L1 L2 4:1 and 100:1 Ratios Price And Quantity
- 171.99 USD ($)/Piece
- 1 Piece
- 171.99 - 190.99 USD ($)/Piece
Precision Planetary Gearbox ZPLE120 L1 L2 4:1 and 100:1 Ratios Product Specifications
- Spur Gears
- 1000 RPM
- High
- 315*230*160
- Other
- 315 Millimeter (mm)
- Industrial
- Die Casting
- 280 N-m
- Planetary gearbox, ZPLE120
- Other
- See Picture
- Planetary
- 160 Millimeter (mm)
- 4000 RPM
- 230 Millimeter (mm)
- 16.5 Kilograms (kg)
Precision Planetary Gearbox ZPLE120 L1 L2 4:1 and 100:1 Ratios Trade Information
- Qingdao,Shanghai,Lianyungang
- Paypal, Delivery Point (DP), Telegraphic Transfer (T/T), Letter of Credit (L/C)
- 30000 Piece Per Month
- 3 Days
- Contact us for information regarding our sample policy
- Carton
- Central America, North America, South America, Asia, Australia, Eastern Europe, Western Europe, Middle East, Africa
- All India
- RoHS/CE/IAF/CNAS/ISO9001/ISO45001/ISO14001
Product Description
Key Features:-
High torque density delivers strong power transmission in a compact design.
-
Spur gears provide smooth and efficient performance.
-
The rugged housing ensures durability in demanding environments.
-
Low backlash enhances accuracy for precise motion control.
-
Multiple reduction ratios offer flexibility for various applications.
-
Easy installation with standard mounting interfaces saves time.
-
Maintenance-free operation minimizes downtime and reduces costs.
-
Input size:22mm
-
Output size:25mm
-
Rotational Inertia:2.63kgcm
-
Ratio: 4:1,100:1
-
Delivery Time: 1-3 Days
-
Improved efficiency reduces power usage for cost savings.
-
Extended lifespan decreases the need for frequent repairs or replacements.
-
Strong load handling capability meets demanding industrial requirements.
-
Low noise levels create a more comfortable working environment.
-
Dependable operation maintains steady and uninterrupted workflow.
-
The Planetary Gear Reducer comes with a one-year warranty.
-
The warranty period begins from the date shown on the product invoice.
-
Customers must provide the original invoice for warranty service requests.
-
Repairs outside the warranty period or for non-covered products will still be handled by our service team.
-
Our maintenance center remains available for support even after the warranty expires.
-
If you need special customization or have requirements for delivery time, please contact Sales manager
High-Efficiency Power Transmission
The ZPLE120 L1 L2 gearbox stands out with its high-efficiency spur gear system, minimizing energy loss and supporting optimal power transfer in industrial machinery. Designed to handle up to 280 N-m output torque, it is ideal for applications that demand precision and sustained performance.
Versatile Ratio Options for Varied Applications
Offering both 4:1 and 100:1 gear ratios, this planetary gearbox provides versatility for speed reduction or torque multiplication. It caters to a broad range of industrial uses, from automation systems to material handling, adapting seamlessly to distinct workflow needs.
FAQ's of Precision Planetary Gearbox ZPLE120 L1 L2 4:1 and 100:1 Ratios:
Q: How is the Precision Planetary Gearbox ZPLE120 installed in industrial setups?

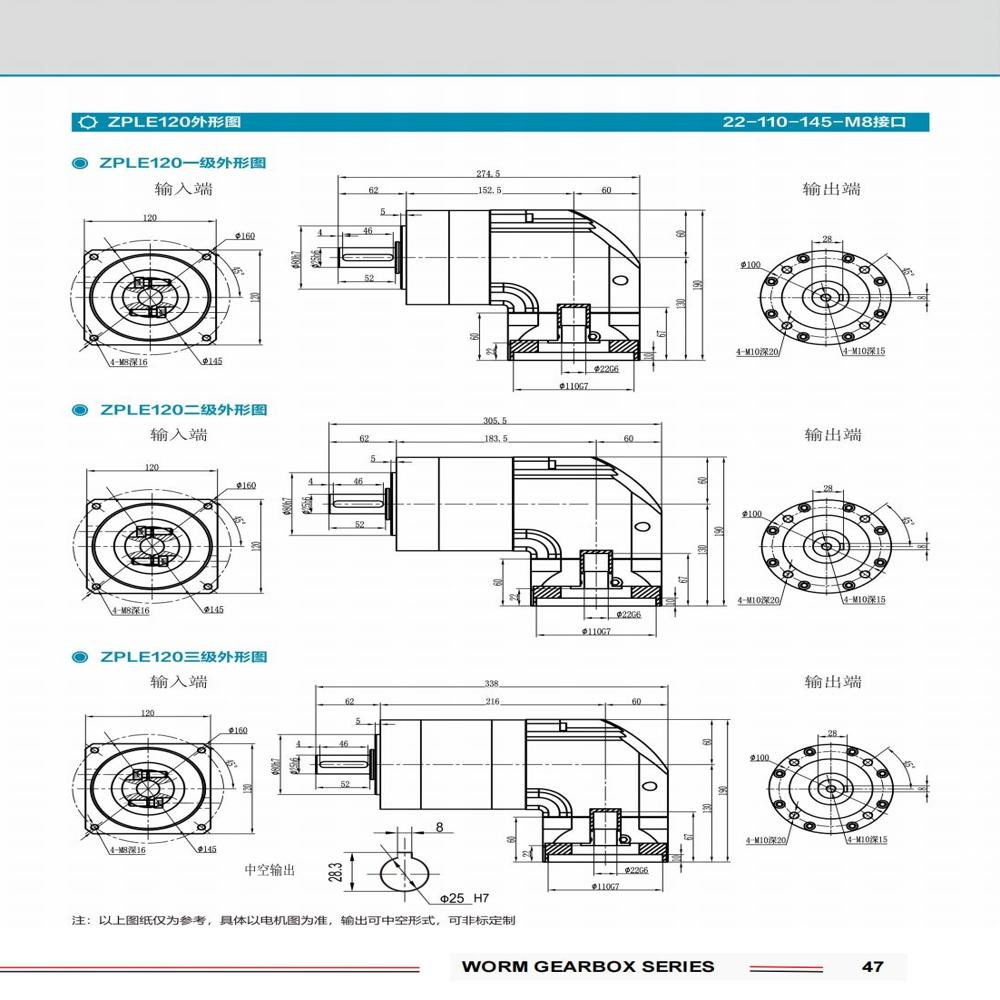

A: Installation requires secure mounting using the provided dimensions (315x230x160 mm), ensuring alignment with the motor and application shaft. Professional setup is recommended to optimize performance and maintain the integrity of the gearing arrangement.Q: What are the main benefits of using the ZPLE120 gearbox with planetary gearing?
A: The key benefits include high torque output, compact design, and superior efficiency. Planetary gearing ensures smooth operation, reduced backlash, and longevity, making it suitable for precision-dependent industrial processes.Q: When should I choose between the 4:1 and 100:1 ratios offered by this gearbox?
A: Select the 4:1 ratio for higher output speeds and moderate torque, suitable for applications needing rapid movement. The 100:1 ratio is optimal for tasks that require maximum torque and significant speed reduction, such as heavy lifting or positioning tasks.Q: Where is the ZPLE120 planetary gearbox manufactured and supplied from?
A: This gearbox is manufactured and supplied by reputable suppliers in China, ensuring quality production standards and reliable delivery for industrial buyers worldwide.Q: What is the processing type used for the ZPLE120 Planetary Gearbox?
A: The gearbox is produced through die casting, a technique that enhances its structural durability, precision in gear formation, and overall reliability for high-performance use.Q: How can this gearbox be used in industrial environments?
A: It's primarily used for driving automated machinery, conveyors, robotics, and material handling machines where precise speed control and high torque are essential.
