CHENYUE NMRV040 CY Series Worm Gearbox Worm Gear Reducer Input 14/11/9mm, Output 18mm, Speed Ratio 5:1 to 100:1, Free Maintenance CHENYUE NMRV040 CY Series Worm Gearbox Worm Gear Reducer Input 14/11/9mm, Output 18mm, Speed Ratio 5:1 to 100:1, Free Maintenance CHENYUE NMRV040 CY Series Worm Gearbox Worm Gear Reducer Input 14/11/9mm, Output 18mm, Speed Ratio 5:1 to 100:1, Free Maintenance CHENYUE NMRV040 CY Series Worm Gearbox Worm Gear Reducer Input 14/11/9mm, Output 18mm, Speed Ratio 5:1 to 100:1, Free Maintenance CHENYUE NMRV040 CY Series Worm Gearbox Worm Gear Reducer Input 14/11/9mm, Output 18mm, Speed Ratio 5:1 to 100:1, Free Maintenance CHENYUE NMRV040 CY Series Worm Gearbox Worm Gear Reducer Input 14/11/9mm, Output 18mm, Speed Ratio 5:1 to 100:1, Free Maintenance CHENYUE NMRV040 CY Series Worm Gearbox Worm Gear Reducer Input 14/11/9mm, Output 18mm, Speed Ratio 5:1 to 100:1, Free Maintenance
CHENYUE NMRV040 CY Series Worm Gearbox Worm Gear Reducer Input 14/11/9mm, Output 18mm, Speed Ratio 5:1 to 100:1, Free Maintenance
CHENYUE NMRV040 CY Series Worm Gearbox Worm Gear Reducer Input 14/11/9mm, Output 18mm, Speed Ratio 5:1 to 100:1, Free Maintenance CHENYUE NMRV040 CY Series Worm Gearbox Worm Gear Reducer Input 14/11/9mm, Output 18mm, Speed Ratio 5:1 to 100:1, Free Maintenance CHENYUE NMRV040 CY Series Worm Gearbox Worm Gear Reducer Input 14/11/9mm, Output 18mm, Speed Ratio 5:1 to 100:1, Free Maintenance CHENYUE NMRV040 CY Series Worm Gearbox Worm Gear Reducer Input 14/11/9mm, Output 18mm, Speed Ratio 5:1 to 100:1, Free Maintenance CHENYUE NMRV040 CY Series Worm Gearbox Worm Gear Reducer Input 14/11/9mm, Output 18mm, Speed Ratio 5:1 to 100:1, Free Maintenance CHENYUE NMRV040 CY Series Worm Gearbox Worm Gear Reducer Input 14/11/9mm, Output 18mm, Speed Ratio 5:1 to 100:1, Free Maintenance

CHENYUE NMRV040 CY Series Worm Gearbox Worm Gear Reducer Input 14/11/9mm, Output 18mm, Speed Ratio 5:1 to 100:1, Free Maintenance

38.99 USD ($)/Piece
Get a Price/Quote

Product Details:

  • Gear Type Worm Gears
  • Usage Industrial
  • Material Other
  • Size 23*19.5*25.5
  • Processing Type Die Casting
  • Height 25.5 Centimeter (cm)
  • Gear Tooth Profile Other
  • Click to View more
Request to Call Back Send Inquiry
X

CHENYUE NMRV040 CY Series Worm Gearbox Worm Gear Reducer Input 14/11/9mm, Output 18mm, Speed Ratio 5:1 to 100:1, Free Maintenance Price And Quantity

  • 38.99 USD ($)/Piece
  • 1 Piece

CHENYUE NMRV040 CY Series Worm Gearbox Worm Gear Reducer Input 14/11/9mm, Output 18mm, Speed Ratio 5:1 to 100:1, Free Maintenance Product Specifications

  • Worm
  • Industrial
  • High
  • 11N.m-39N.m N-m
  • Other
  • 19.5 Centimeter (cm)
  • CYRV40 0.37 KW Worm Gearbox
  • Die Casting
  • 25.5 Centimeter (cm)
  • 3.2 Kilograms (kg)
  • blue,green,gray
  • Worm Gears
  • Other
  • 0.09kW-0.37kW
  • 23*19.5*25.5
  • 23 Centimeter (cm)

CHENYUE NMRV040 CY Series Worm Gearbox Worm Gear Reducer Input 14/11/9mm, Output 18mm, Speed Ratio 5:1 to 100:1, Free Maintenance Trade Information

  • Qingdao,Shanghai,Lianyungang
  • Paypal, Delivery Point (DP), Telegraphic Transfer (T/T), Letter of Credit (L/C)
  • 30000 Piece Per Month
  • 3 Days
  • Contact us for information regarding our sample policy
  • Carton+Catalogue+Manual+PE Plastic Bag+QC Certificate+Anti-bump Filler+Desiccant+Engineering Plastic Tray
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • All India
  • CE/RoHS/IAF/CNAS/ISO9001/ISO45001/ISO14001

Product Description

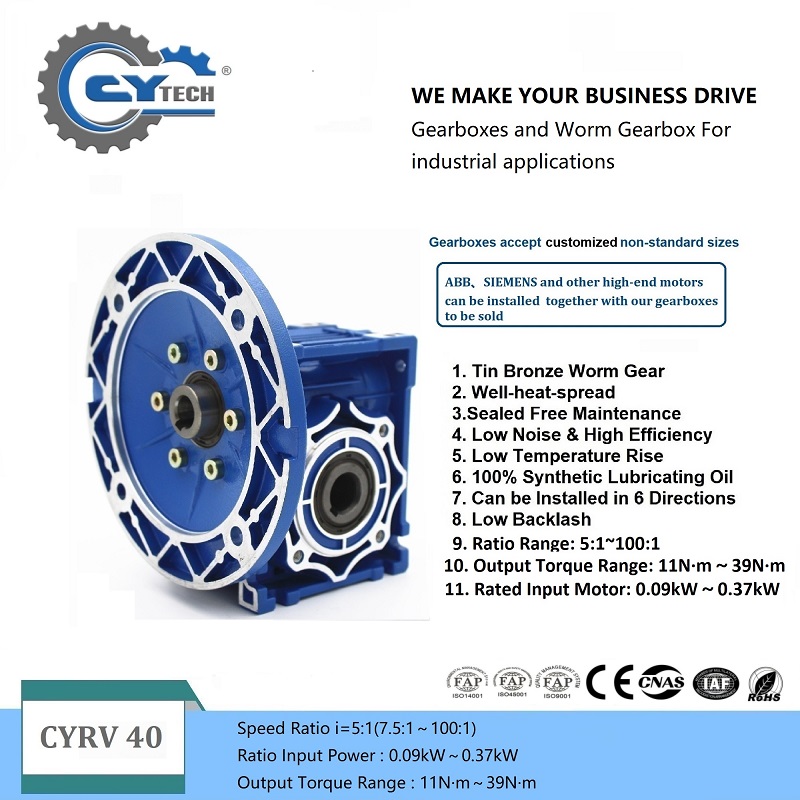

Key features
ABBSIEMENS and other high-end motors can be installed together with our Worm Drive Gearbox to be sold
 WORM WHEEL ADOPTS HIGH QUALITY TIN Bronze LONG SERVICE LIFE AND MORE DURABILITY.
Factory outletprovide video factory inspection
Speed ratio range: from 5:1 to 100:1
Input shaft/hole: 9/11/14mm
Output shaft/hole: 18mm
Rated Input Speed: 1400rpm
Output Speed: 14.5rpm-290rpm
Rated Input motor : 0.09kW-0.37kW
Output Torque Range : 11N.m-39N.m
Colors: Blue or gray or green or according to customer required
Die-cast aluminum alloy housing
Certification: RoHS/CE/IAF/CNAS/ISO9001/ISO45001/ISO14001
Flange: round or square
Delivery time: 1-3 days(for ready goods,we can deliver them within 2days)
Approximate gross weight: 3.2 Kg/pc

Key benefits
Maintenance-free, fully sealed(no need fill oil for whole life)
Good heat dissipation,low temperature rise
Low noise, smooth operation
Energy saving and high efficiency
Can be installed in any position and in all directions
Built-in fully synthetic lubricant, no breather plug,


Tip:
The whole worm gearbox is warranted for one year
The starting date of the warranty period is subject to the date of the
product invoice, please present the invoice when repairing.
Beyond the warranty period or does not belong to the free warranty
products, the company's maintenance center is still dedicated to serve you.
