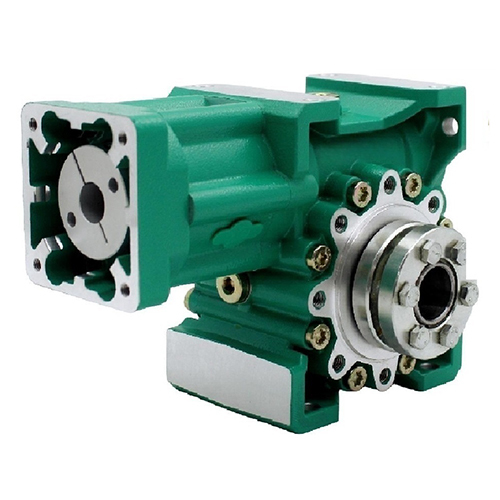

CYCM40 Precision Worm Gearbox, 8 to 15 Arc Minutes, High Performance Worm Gear Reducer Gearboxes for Industrial Applications

Product Description

CYCM series of worm gearbox is with low backlash high precision 8-15 Arc minutes and designed for servo motors covering the whole industry.and suitable for repeated positioning, precision indexing and other intelligent industrial control fields. They are widely used in high end industries such as aerospace, robotics and chip semiconductors. ABB/SlEMES and other high-end motors can be installed together with our gearbox to be sold.

Key features

1. Model No: CYCM 040
2. Accuracy: Less than 2 Arc minutes super precision
3. Factory outlet price and provide outgoing video inspection of factory
4. Speed ratio range : 5:1,7.5:1,10:1,15:1,20:1,25:1,30:1,40:1,50:1,60:1 ,80:1
5. Input size: 11/ 14/ 19 mm
6. Output hole with keyway: 18 mm
7. Output locking disc hole: 20 mm
8. Rated input Torque: 0.55 N.m---9 N.m
9. Output Torque range: 28 N.m--49 N.m
10. Rated input motor power :0.15 kw-1.75 kW
11. Input Flange:85*85 mm

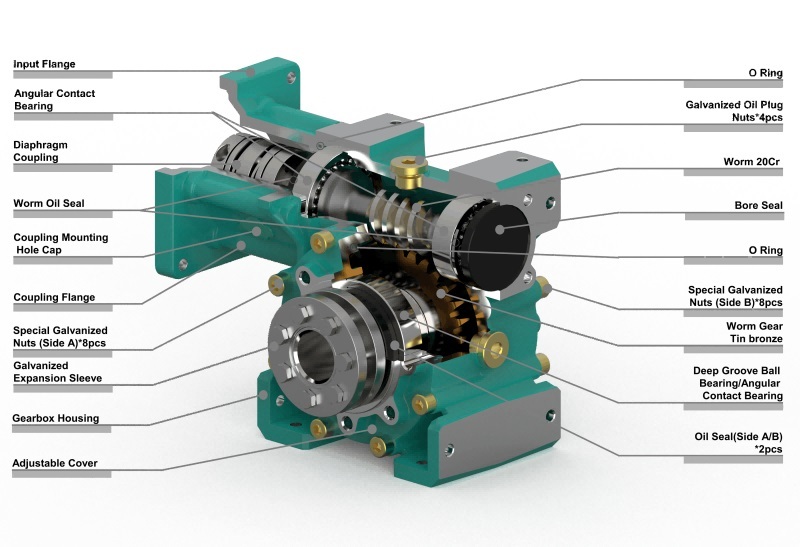

12. Die cast aluminium alloy housing
13. Worm wheel adopts high quality Tin bronze
14. Certification :RoHS/CE/IAF/CNAS/ISO9001/ISO45001/ISO14001
15. Mounting orientation: B3  B6  B7  B8  V5  V6

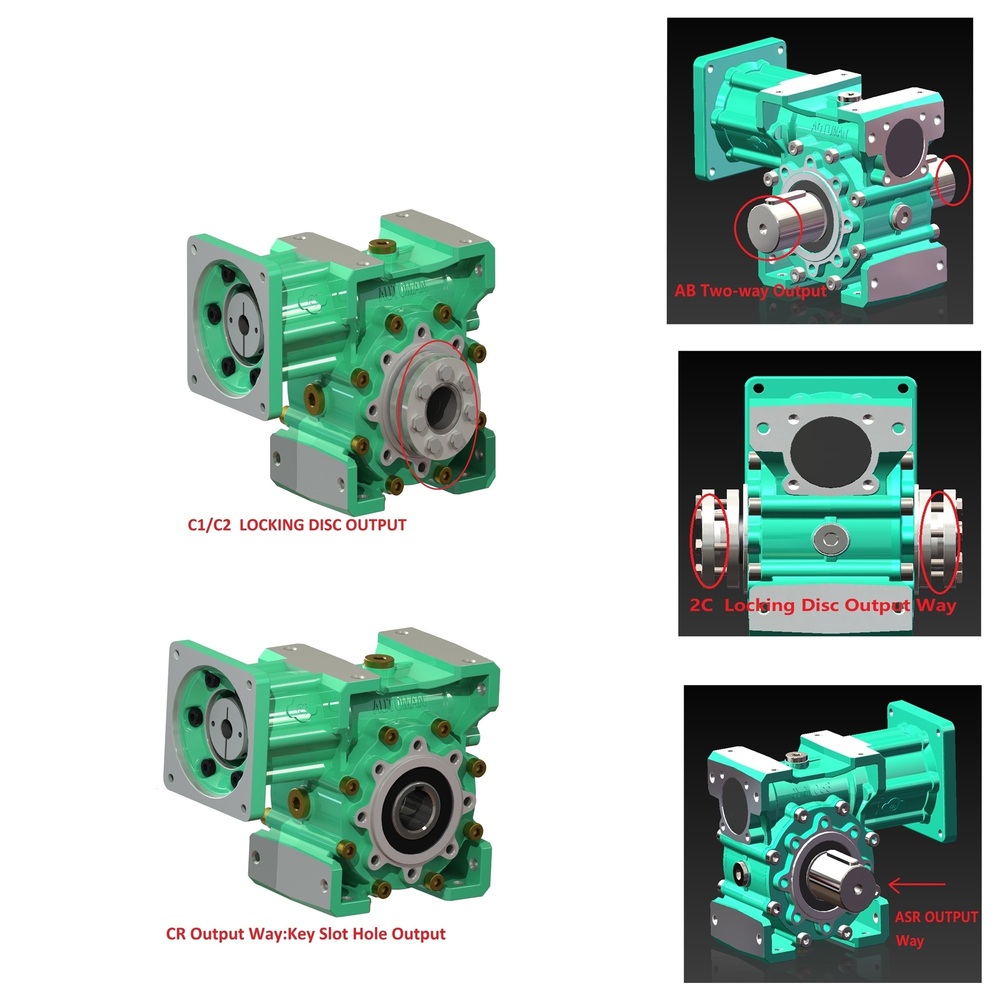

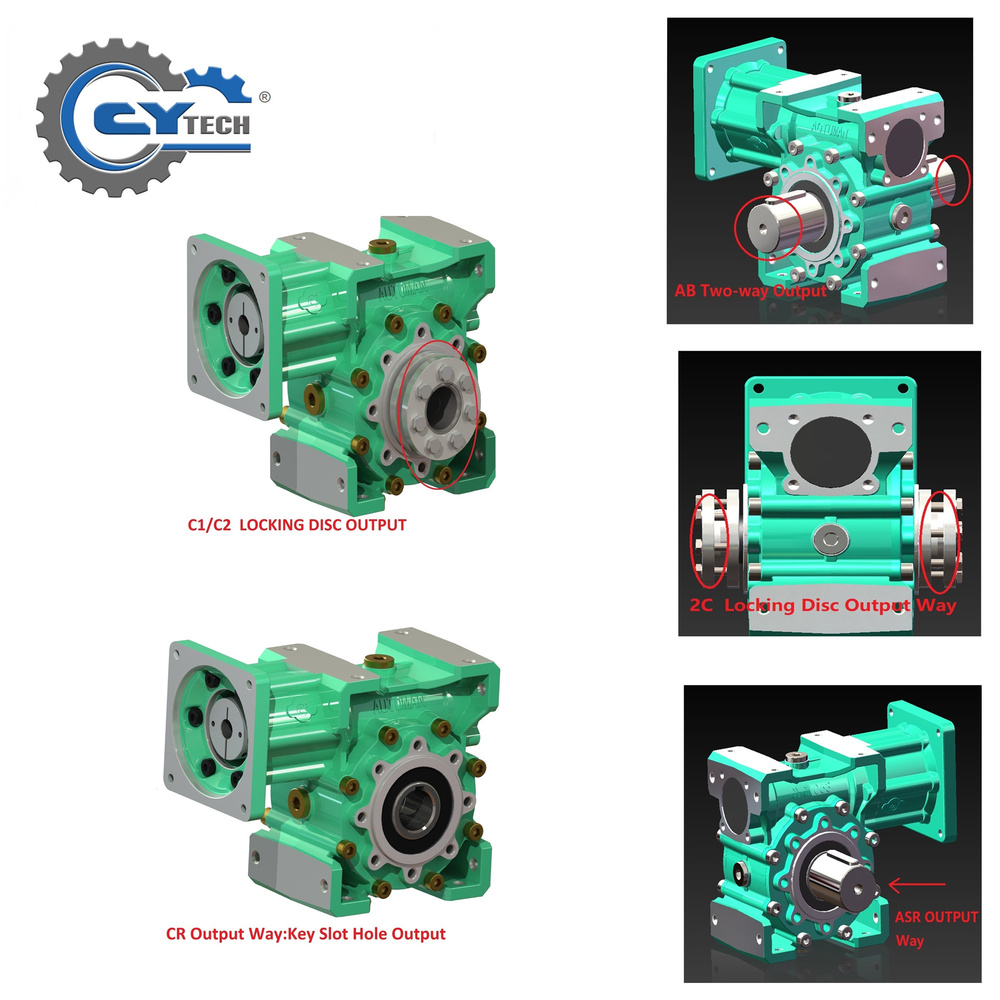

16. With 7 different output ways,C1,C2 CR,2C,ASL,ASR,AB,
17. Can be customized according to customer needs
    18. Delivery time:15 days
    19. Approximate gross weight 5 Kgs(NW about 2.9kgs)
    20.Built-in fully synthetic lubricant oil and maintenance-free,no need change oil for whole life

FAQs of CYCM40 High Precision 0.5-2 Arc Minute Precision Worm Gear:

Q: What is the gearing arrangement of the CYCM40 gearbox?

Q: What material is the CYCM40 Precision Worm Gear made of?

Q: What is the precision level of the CYCM40 gearbox?

Q: What type of applications is the CYCM40 gearbox suitable for?

Q: What is the efficiency of the CYCM40 Worm Drive Gearbox?
