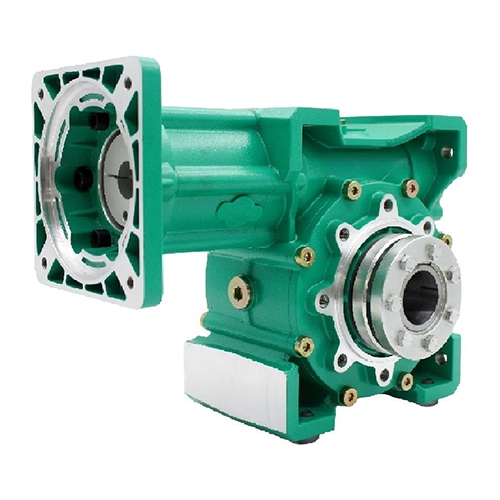

CYCM75 Ultra Precision Worm Gearbox 2 to 5 Arc Min, High Torque Worm Gear Reducer, Durable Gearboxes for Machinery and Motion Control

Product Description

CYCM series of Worm Gear Reducer is with low backlash high precision 2-5 Arc minutes and designed for servo motors covering the whole industry.and suitable for repeated positioning, precision indexing and other intelligent industrial control fields. They are widely used in high end industries such as aerospace, robotics and chip semiconductors. ABB/SlEMES and other high-end motors can be installed together with our gearboxes to be sold.

Key feature

1. Model No.:CYCM075
2. Accuracy: Less than 1 Arc minutes super precision
3. Factory outlet price and provide outgoing video inspection of factory
4. Speed ratio range : 5:1,7.5:1,10:1,15:1,20:1,25:1,30:1,40:1,50:1,60:1 ,80:1

5. Input size: 19 ,20, 2224,28
6.Output hole with keyway35

  Output locking disc hole: 35
Output shaft: 44 mm
7.Rated input Torque: 3.3 N.m---47.7 N.m

9. Output Torque range: 150 N.m--260 N.m

10. Rated input motor power :0.75 kw--9.4 kW

11. Input Flange:130*130 mm

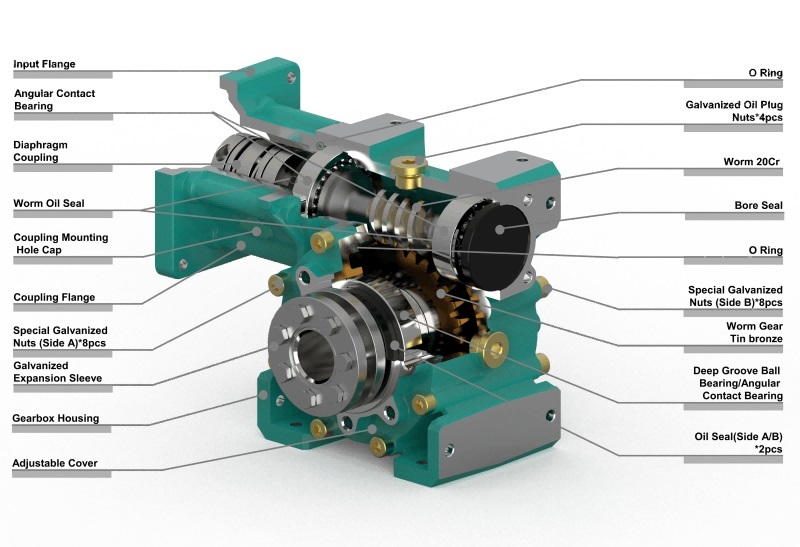

Die cast aluminium alloy housing

13. Worm wheel adopts high quality Tin bronze

14. Certification :RoHS/CE/IAF/CNAS/ISO9001/ISO45001/ISO14001

15. Mounting orientation: B3  B6  B7  B8  V5  V6

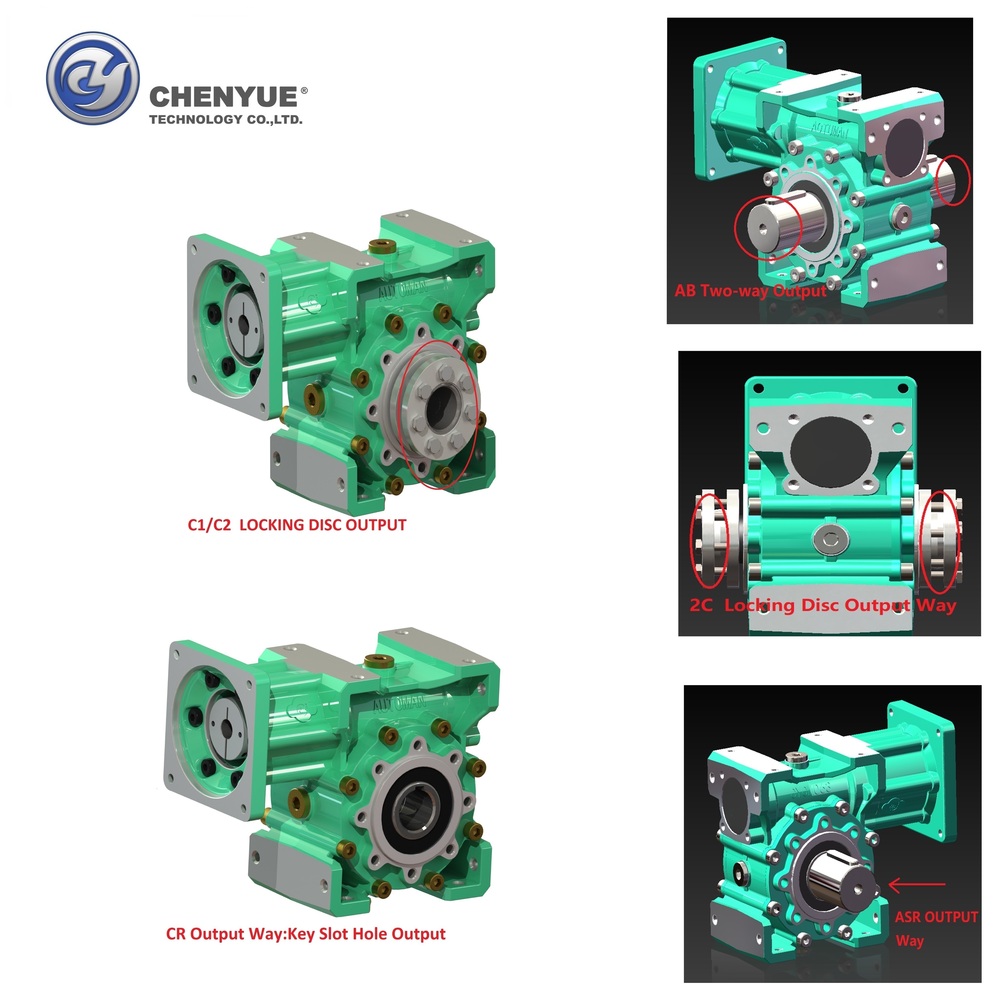

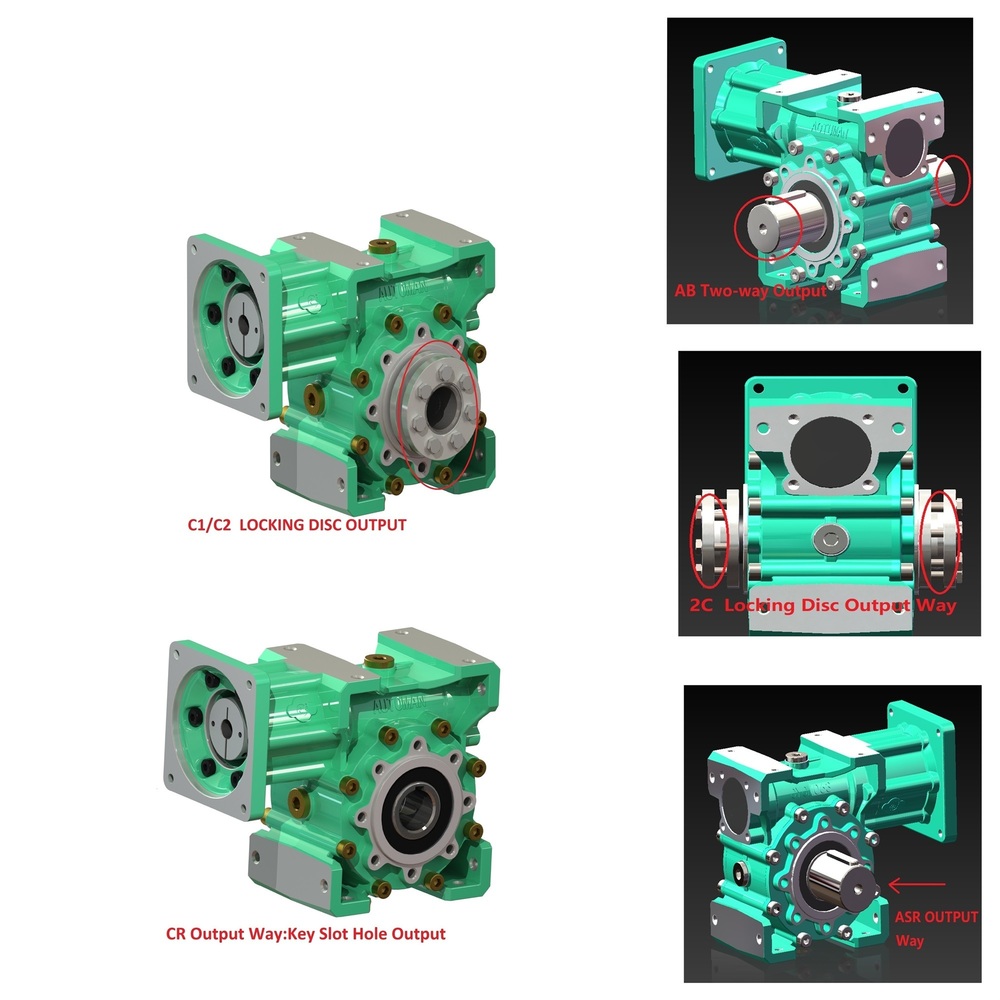

16. With 7 different output ways,C1,C2 CR,2C,ASL,ASR,AB,

17. Can be customized according to customer needs
18. Delivery time:15 days
19. A Wood Approximate gross weight 18 Kgs(NW about 11 kgs)
20.Built-in fully synthetic lubricant oil and maintenance-free,no need change

FAQs of CYCM75 High Precision 0.5-2 Arc Minute Worm Gearbox:

Q: What is the material used for the CYCM75 High Precision Worm Gearbox?

Q: What is the efficiency of the CYCM75 Worm Drive Gearbox?

Q: What is the gearing arrangement of the CYCM75 Worm Gearbox?

Q: What is the gear type of the CYCM75 Worm Gearbox?

Q: In what type of usage is the CYCM75 Worm Gearbox suitable?
