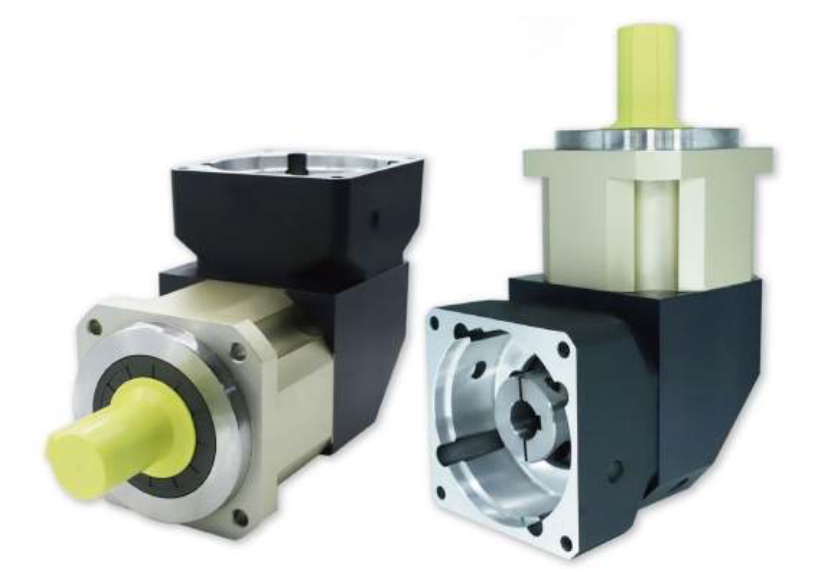

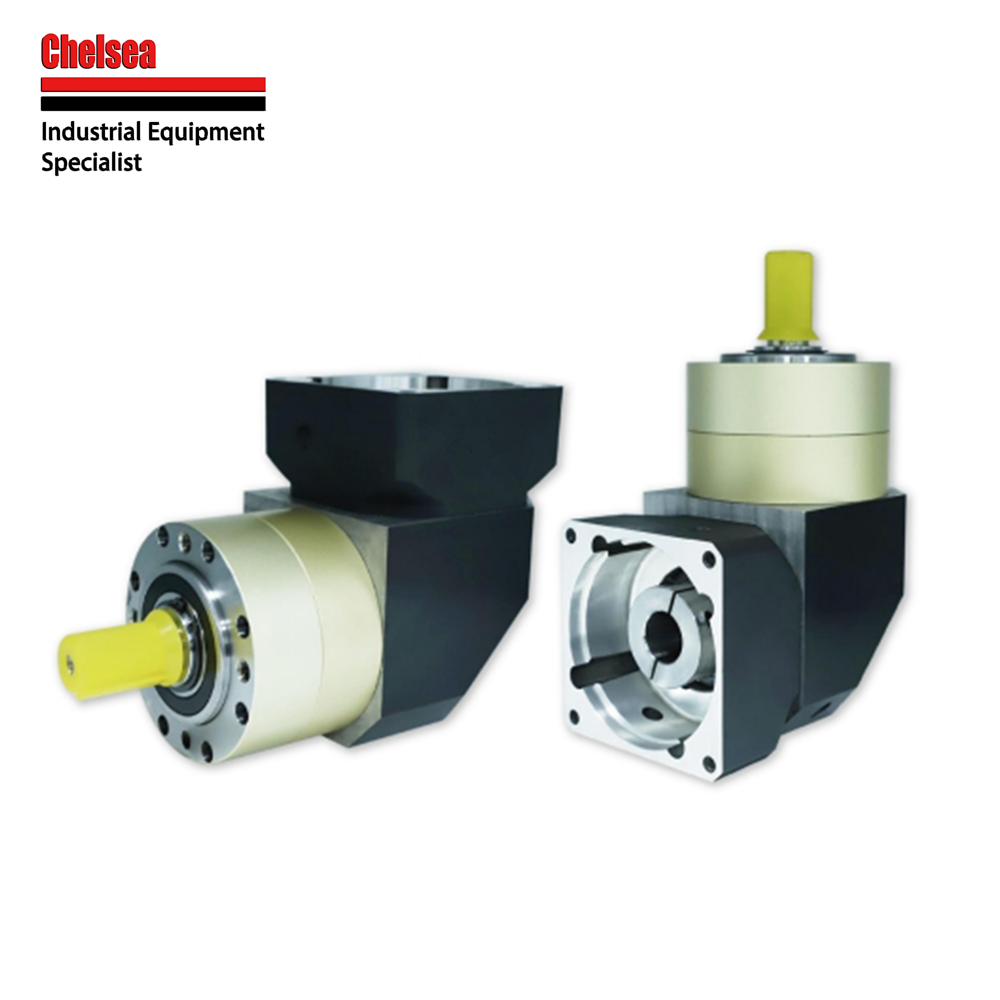

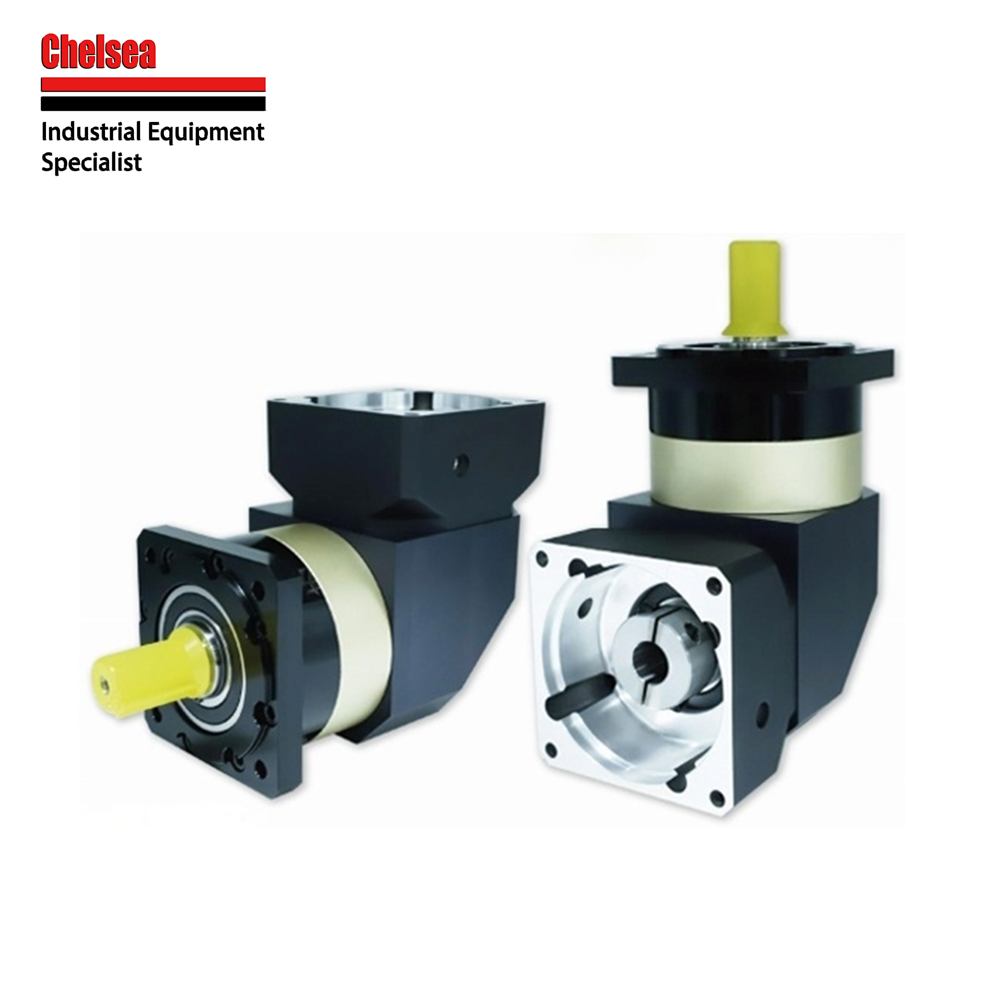

High Performance ZPLF80 L1/L2 Gearbox Compact 22mm/25mm Input Customizable Ratios 4:1 to 100:1 for Precision Motion Control

Product Description

Key Features:

1. The planetary gear system delivers consistent power transfer with minimal energy loss.

2. Durable construction materials withstand extreme operating conditions without failure.

3. Tight tolerance manufacturing eliminates play for precise movement accuracy.

4. Small footprint design fits comfortably in confined installation areas.

5. Enhanced protective seals prevent contamination from external elements.

6. Specially shaped gear teeth minimize sound generation during use.

7. Versatile attachment configurations accommodate various setup requirements.

8. Self-contained lubrication system eliminates routine servicing needs.

9. Input size:19mm

10. Output size:20

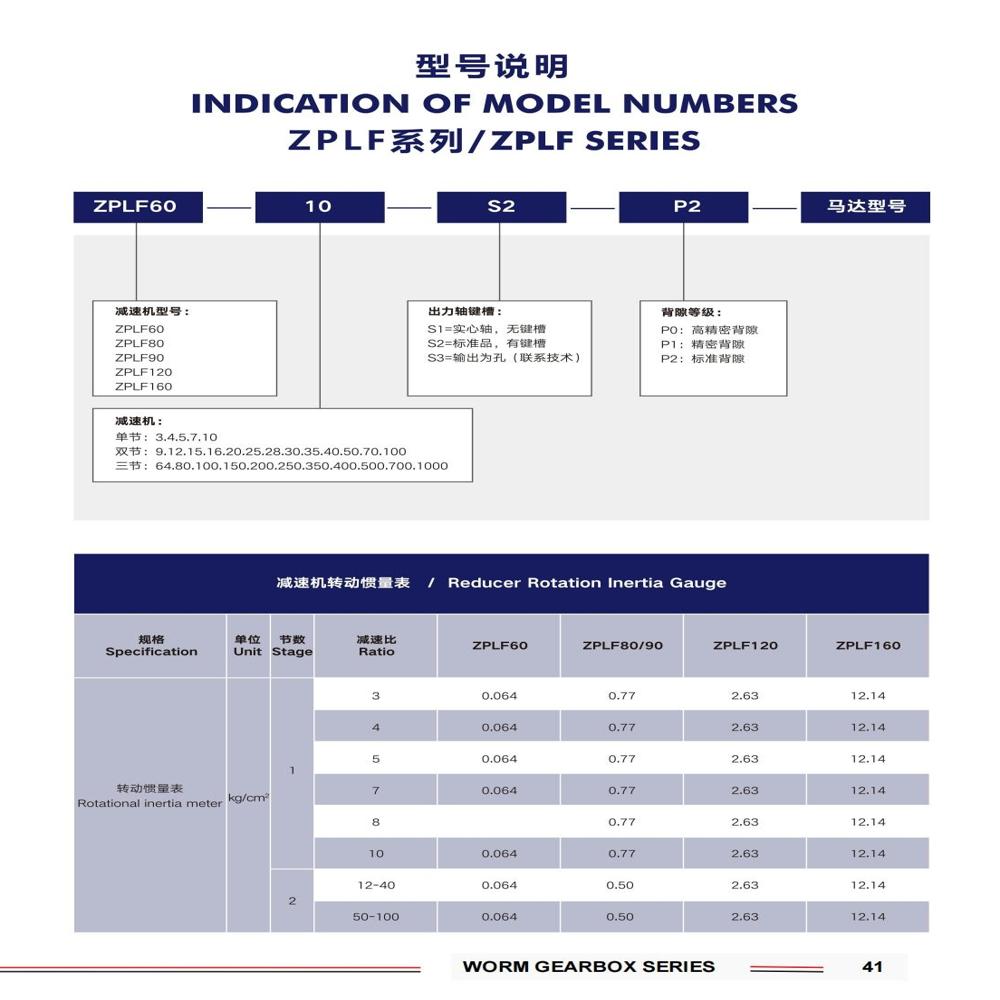

11. Rotational Inertia:0.50-0.77kgcm

12. Ratio Range: 4:1,100:1

Key Benefits:

1. Enhanced productivity results from maximized mechanical efficiency.

2. Long-lasting performance is achieved through superior build quality.

3. Dependable operation maintains critical positioning accuracy.

4. Compact dimensions allow installation in space-limited machinery.

5. Increased uptime is ensured by eliminating maintenance intervals.

Versatile Ratios for Precision Control

The ZPLF80 L1/L2 gearbox offers an extensive range of customizable gear ratios from 4:1 to 100:1, enabling users to meet precise motion control requirements. This flexibility ensures smooth operation across various industrial applications where exact speed and torque adjustment are crucial for system performance.


Industrial Strength and Compact Size

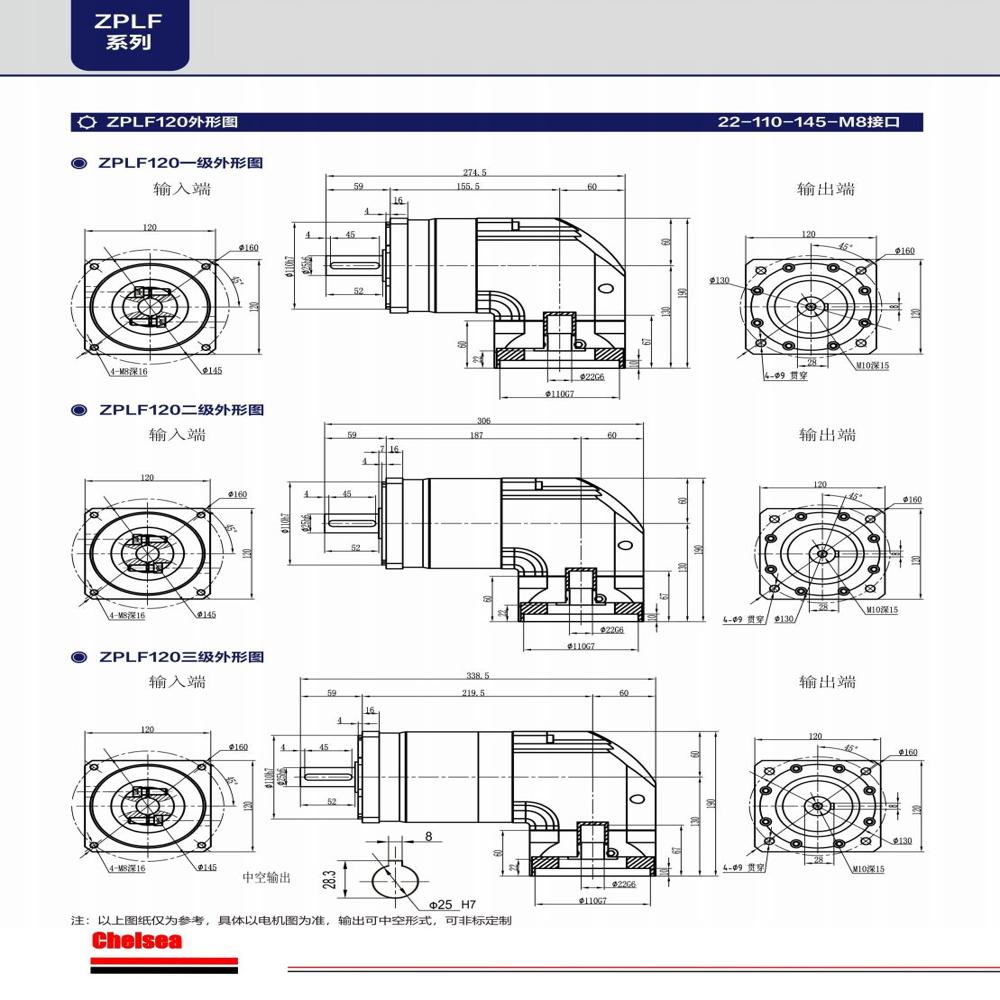

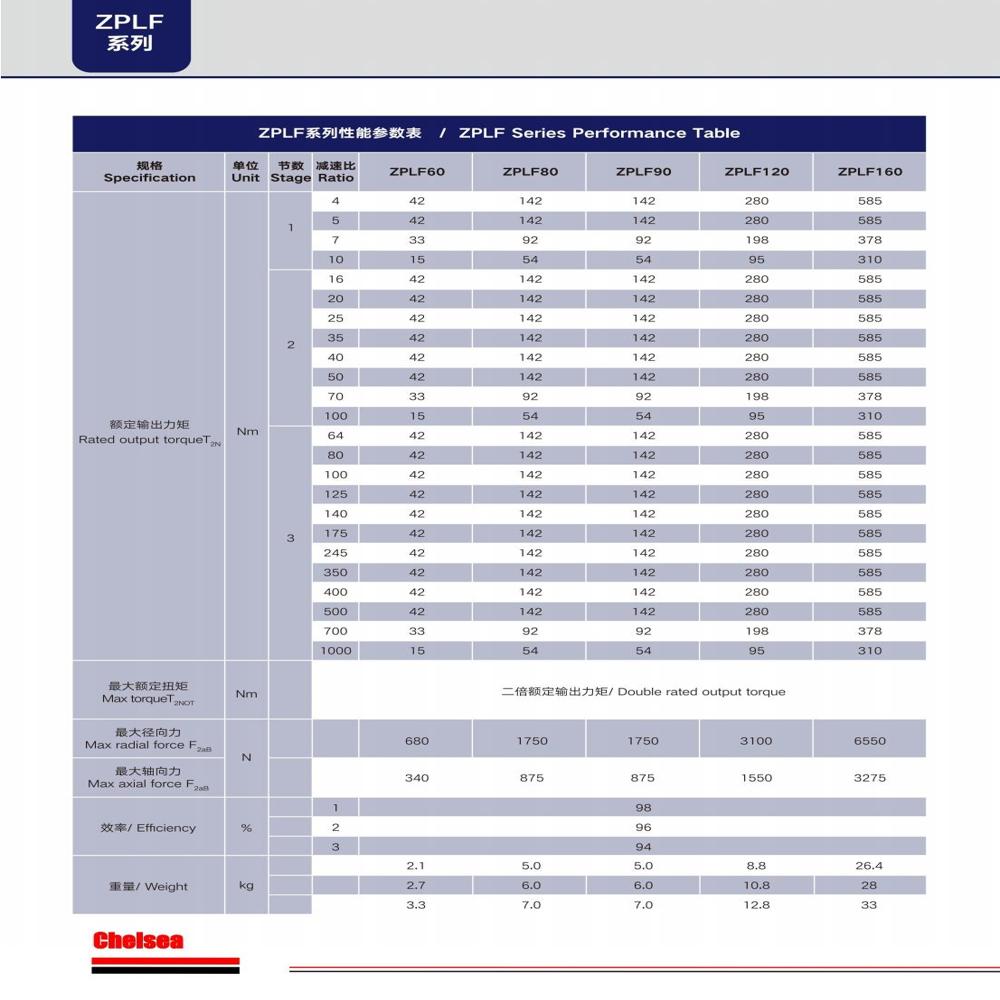

Despite its robust output torque of 142 N-m and planetary spur gear design, this gearbox maintains a compact footprint of 221mm in length, 169mm in height, and 125mm in width. Its die-cast construction and efficient gearing maximize power transfer while minimizing space requirements in demanding settings.
