PHL142 Precision Planetary Gearbox 35mm Motor Input 40mm Output
191.99 USD ($)/Piece
Product Details:
- Usage Industrial
- Material Other
- Processing Type Die Casting
- Size 317*220*220
- Gear Tooth Profile Other
- Height 220 Millimeter (mm)
- Product Type Planetary gearbox, PHL142
- Click to View more
X
PHL142 Precision Planetary Gearbox 35mm Motor Input 40mm Output Price And Quantity
- 191.99 USD ($)/Piece
- 191.99 - 267.99 USD ($)/Piece
- 1 Piece
PHL142 Precision Planetary Gearbox 35mm Motor Input 40mm Output Product Specifications
- 3000 RPM
- Planetary gearbox, PHL142
- See Picture
- Other
- 21.5 Kilograms (kg)
- Die Casting
- High
- Other
- Industrial
- 3000
- 30-750 RPM
- 317*220*220
- Planetary
- 317 Millimeter (mm)
- 360-550 N-m
- 220 Millimeter (mm)
- 220 Millimeter (mm)
PHL142 Precision Planetary Gearbox 35mm Motor Input 40mm Output Trade Information
- Qingdao,Shanghai,Lianyungang
- Paypal, Delivery Point (DP), Telegraphic Transfer (T/T), Letter of Credit (L/C)
- 30000 Piece Per Month
- 3 Days
- Contact us for information regarding our sample policy
- Carton
- Western Europe, Asia, Australia, Central America, North America, Eastern Europe, South America, Middle East, Africa
- All India
- RoHS/CE/IAF/CNAS/ISO9001/ISO45001/ISO14001
Product Description

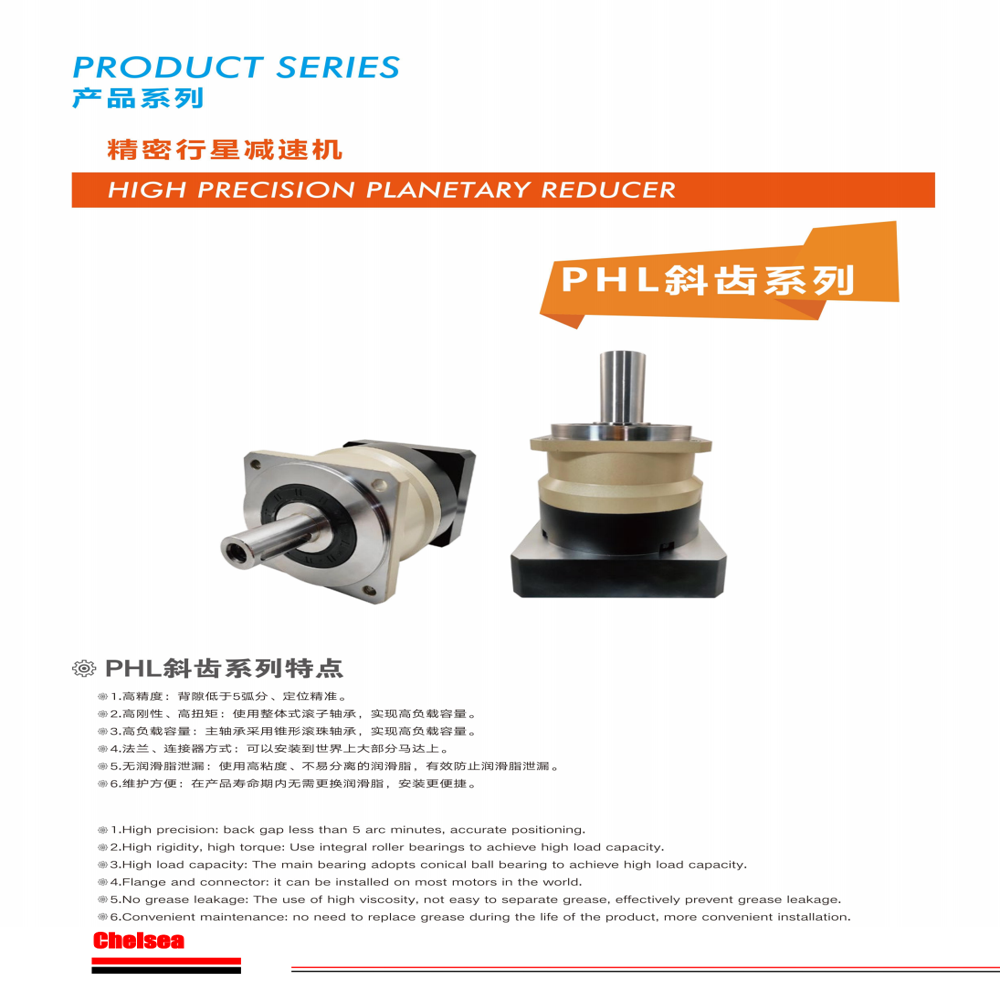

Key Features:
- High precision with less than 5 arc-minutes backlash for accurate positioning.
- Integral roller bearings provide high rigidity and torque transmission.
- Conical ball bearings support heavy radial and axial loads.
- Universal flange design ensures compatibility with most global motor standards.
- High-viscosity grease prevents separation and eliminates leakage.
- Maintenance-free operation with lifetime lubrication.
- Hardened and ground gears deliver extended service life.
- Corrosion-resistant housing protects components in harsh environments.
- Input size: 35mm
- Output size: 40mm

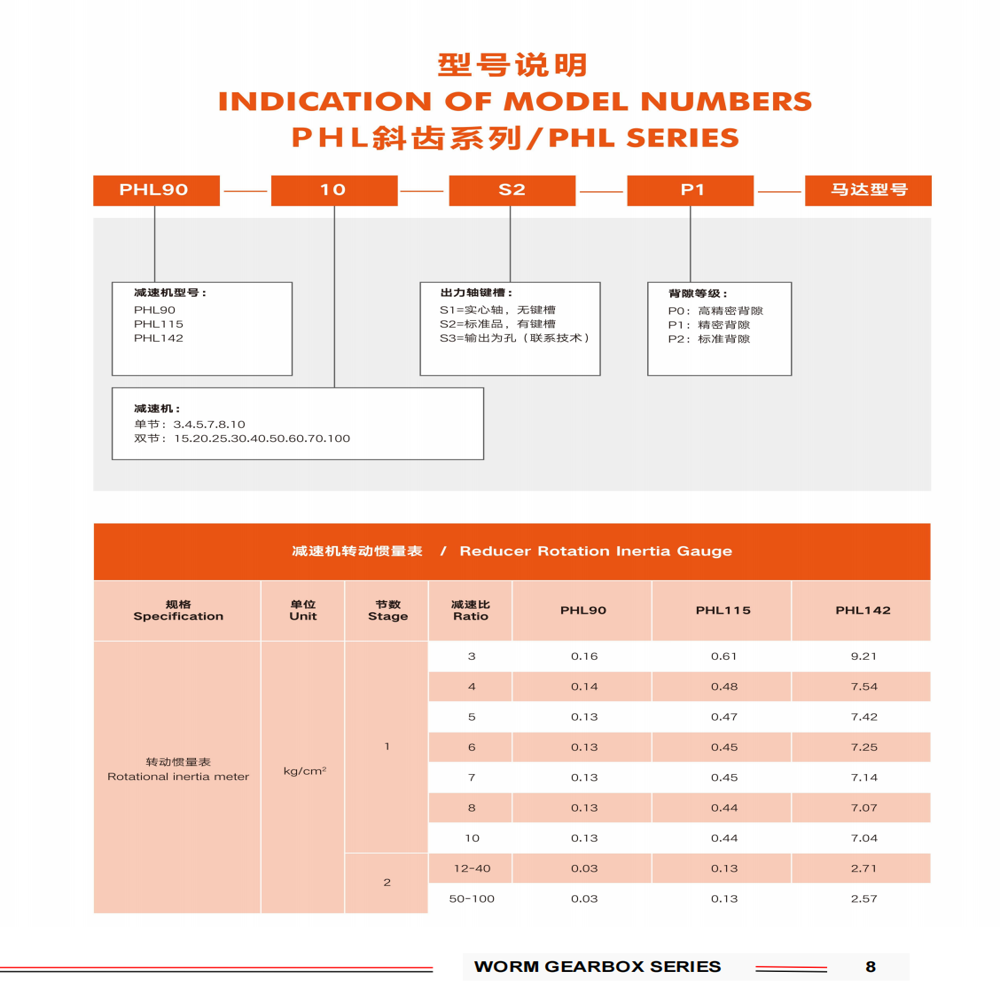

- Rotational Inertia: 2.57-9.21kgcm
- Ratio Range: 3:1,100:1
- Delivery time: 1-3 days
Key Benefits:
Ensures repeatable precision in automated positioning systems.
Handles peak torque demands without performance loss.
Supports combined heavy loads in both radial and axial directions.
Simplifies motor integration with standardized mounting.
Eliminates maintenance costs with permanent lubrication.
Durable construction reduces downtime in industrial applications.
Tip:
A 12-month manufacturer's warranty applies to all planetary gear reducers.
Warranty coverage activates upon the purchase date documented in the sales receipt.
Proof of purchase in the form of the original invoice is mandatory for warranty claims.
Services performed after warranty expiration require payment of applicable fees.
Units no longer under warranty qualify for our paid repair services.
Our technical support team provides continuous assistance regardless of warranty status.
If you need special customization or have requirements for delivery time, please contact Sales manager email: chenyuetech@gmail.com, Watsapp: +86 132 7517 8089
High-Torque Performance for Industrial Demands
The PHL142 gearbox is engineered to handle high output torque while maintaining precise control and minimized drivetrain backlash, making it suitable for complex industrial automation projects. Its planetary design distributes load effectively, ensuring consistent performance even under heavy use.
Precision Engineering and Compact Design
With a size of 317x220x220mm and a length of 317mm, this gearbox fits seamlessly into a range of machine configurations. Its die-cast housing enhances durability without adding unnecessary bulk. The compact, robust structure makes it ideal for applications where space and strength are critical.
Reliable and Efficient Operation
Designed for high-efficiency power transfer, the PHL142 maximizes motor performance while minimizing energy loss. Its operating speed and power range accommodate various industrial processes, contributing to long-term reliability and reduced maintenance requirements in production settings.
FAQ's of PHL142 Precision Planetary Gearbox 35mm Motor Input 40mm Output:
Q: How is the PHL142 Precision Planetary Gearbox installed and integrated into machinery?
A: Installation involves mounting the gearbox to the motor using the 35mm input and securing the 40mm output to the driven system. Its standard dimensions and compatibility with typical industrial motors make integration straightforward. Professional alignment is recommended to ensure optimal performance and longevity.Q: What distinguishes the PHL142 Planetary Gearbox from other gearbox types?
A: The planetary gearing arrangement enables balanced torque distribution, high efficiency, and compact design. This makes it superior for applications where space is limited and high torque is essential, compared to parallel shaft or worm gearboxes.Q: When should the PHL142 gearbox be selected for industrial use?
A: The PHL142 is ideal when consistent, high torque and precise positioning are required, such as in automated manufacturing systems, robotics, or industrial conveyors. Its robust construction supports continuous duty cycles and demanding workloads.Q: Where is the PHL142 Precision Planetary Gearbox manufactured and supplied from?
A: This gearbox is manufactured and supplied in China by experienced industrial equipment providers, ensuring quality control and compliance with international standards for industrial machinery components.Q: What processes benefit most from using the PHL142 gearbox?
A: Processes that require accurate speed control, high torque transmission, and reliability, including automated assembly lines, material handling, and large-scale production machinery, benefit greatly from the PHL142's capabilities.Q: How does using the PHL142 gearbox enhance operational efficiency?
A: The high efficiency of the planetary arrangement minimizes power loss during transmission, which optimizes the motor's output and reduces energy consumption overall. Its low maintenance requirements further contribute to cost-effective operation.Tell us about your requirement
