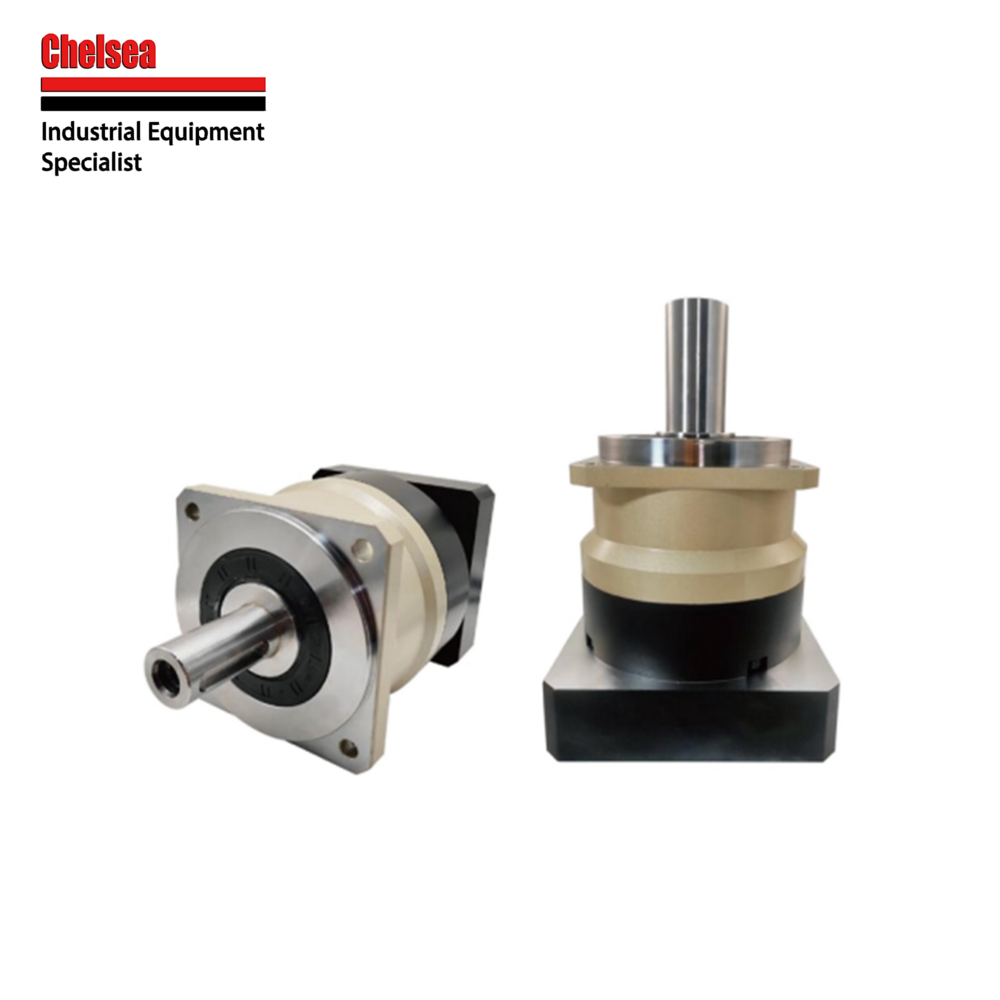

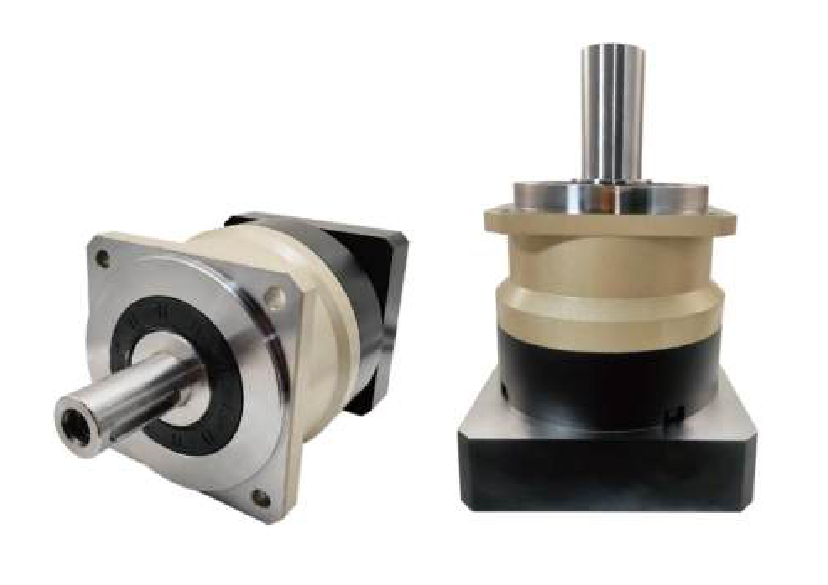

PHL115 Series L1/L2 Planetary Gearbox 22mm Input Shaft 32mm Output Shaft
111.99 USD ($)/Piece
Product Details:
- Usage Industrial
- Material Other
- Size 244*170*170
- Height 170 Millimeter (mm)
- Gear Tooth Profile Other
- Product Type Planetary gearbox, PHL115
- Gearing Arrangement Planetary
- Click to View more
X
PHL115 Series L1/L2 Planetary Gearbox 22mm Input Shaft 32mm Output Shaft Price And Quantity
- 1 Piece
- 111.99 USD ($)/Piece
- 111.99 - 151.99 USD ($)/Piece

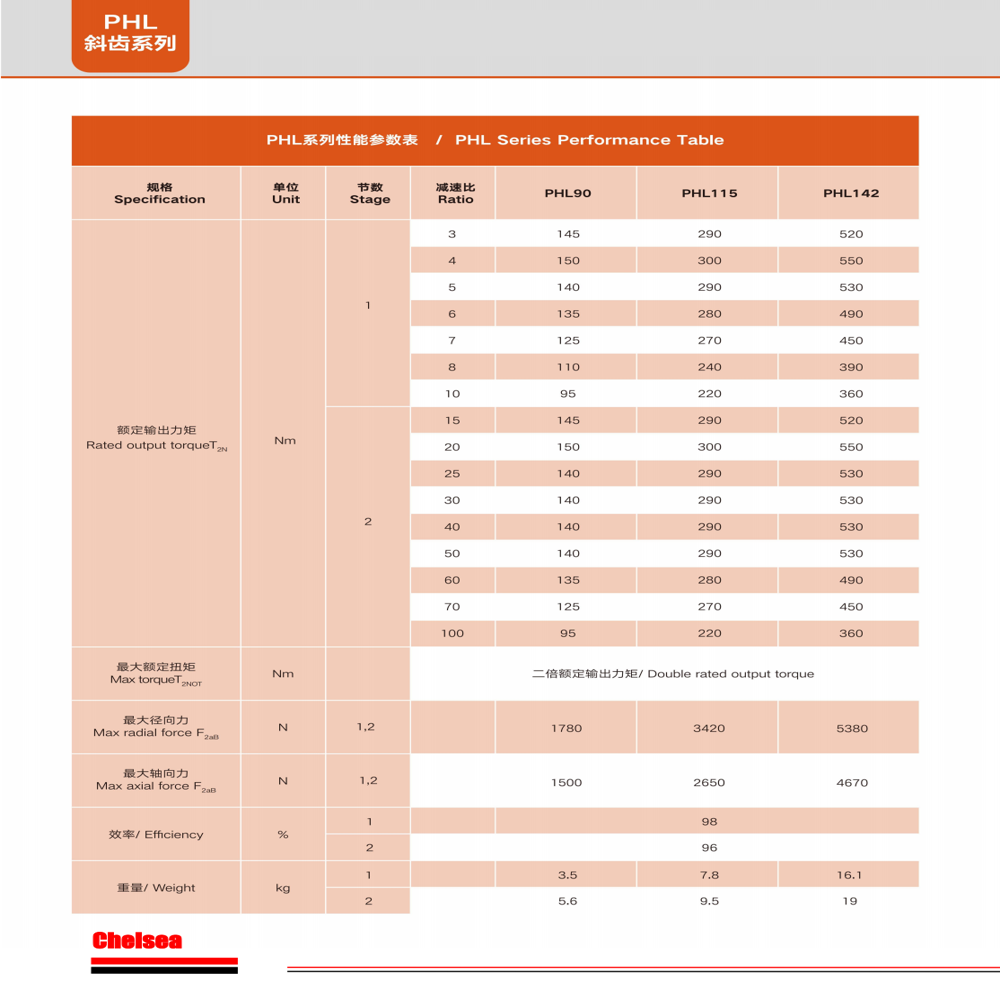

PHL115 Series L1/L2 Planetary Gearbox 22mm Input Shaft 32mm Output Shaft Product Specifications
- 4000 RPM
- 40-1000 RPM
- Planetary
- Industrial
- Planetary gearbox, PHL115
- Other
- 220-300 N-m
- High
- 244*170*170
- 170 Millimeter (mm)
- See Picture
- Other
- 12.5 Kilograms (kg)
- 244 Millimeter (mm)
- 170 Millimeter (mm)
PHL115 Series L1/L2 Planetary Gearbox 22mm Input Shaft 32mm Output Shaft Trade Information
- Qingdao,Shanghai,Lianyungang
- Telegraphic Transfer (T/T), Letter of Credit (L/C), Paypal, Delivery Point (DP)
- 30000 Piece Per Month
- 3 Days
- Contact us for information regarding our sample policy
- Carton
- South America, Eastern Europe, Western Europe, Middle East, Africa, Asia, Australia, Central America, North America
- All India
- RoHS/CE/IAF/CNAS/ISO9001/ISO45001/ISO14001
Product Description

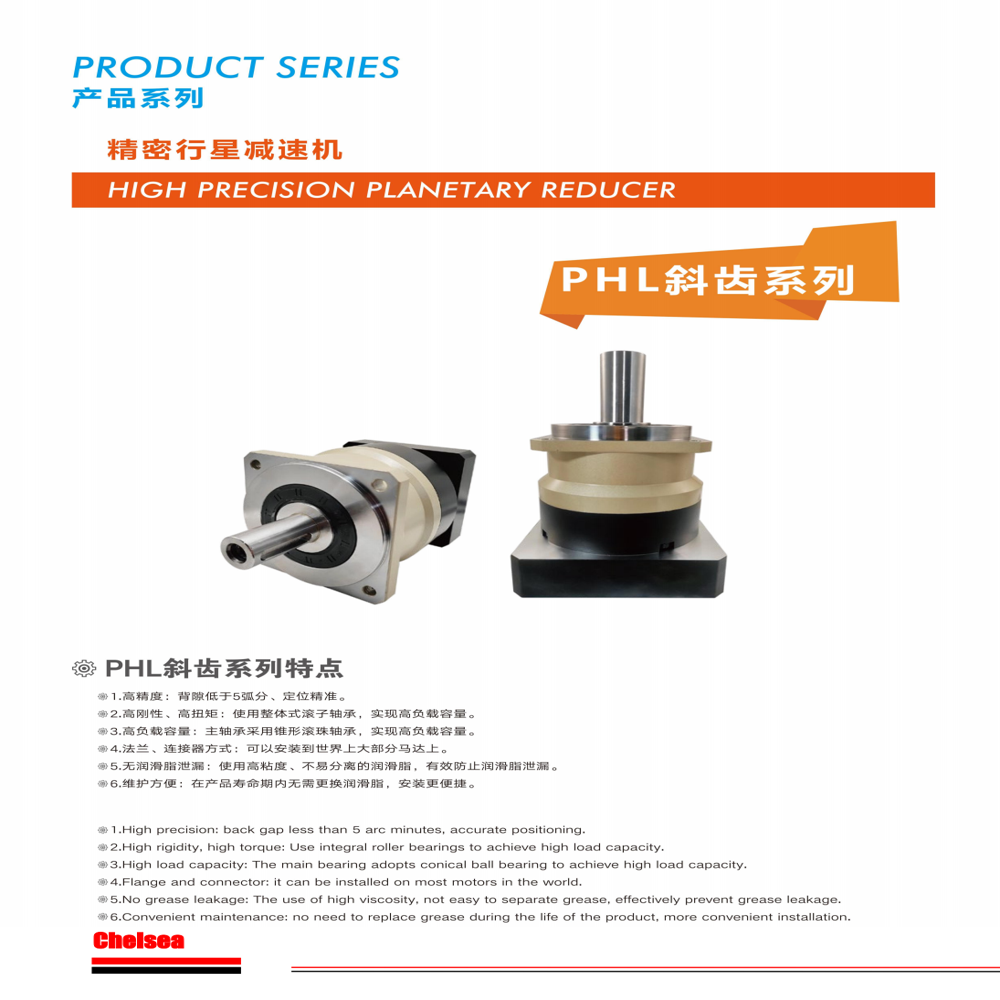

Key Features:
High precision with less than 5 arc-minutes backlash for accurate positioning.
Integral roller bearings provide high rigidity and torque transmission.
Conical ball bearings support heavy radial and axial loads.
Universal flange design ensures compatibility with most global motor standards.
High-viscosity grease prevents separation and eliminates leakage.
Maintenance-free operation with lifetime lubrication.
Hardened and ground gears deliver extended service life.
Corrosion-resistant housing protects components in harsh environments.
Input size: 19mm
Output size:22mm

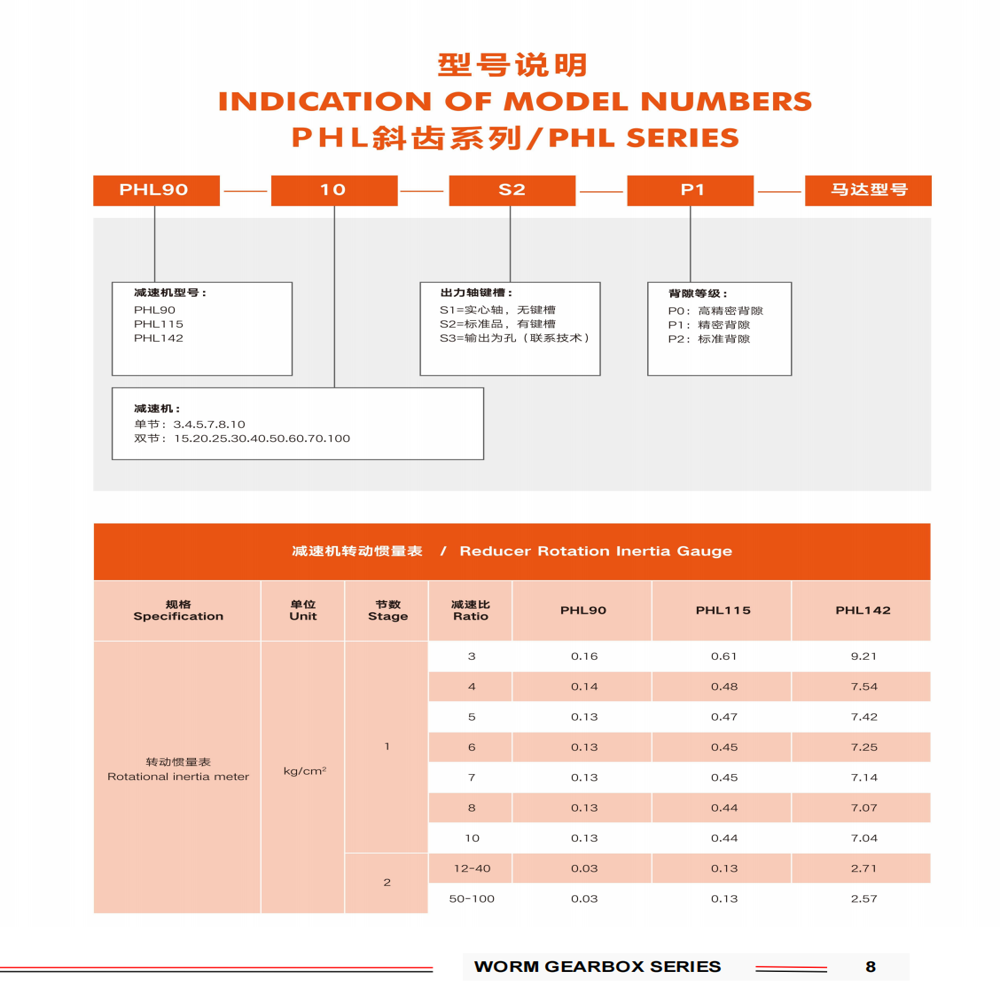

Rotational Inertia:0.03-0.16kgcm
Ratio Range:3:1,100:1
Delivery time: 1-3 days
Key Benefits:
Ensures repeatable precision in automated positioning systems.
Handles peak torque demands without performance loss.
Supports combined heavy loads in both radial and axial directions.
Simplifies motor integration with standardized mounting.
Eliminates maintenance costs with permanent lubrication.
Durable construction reduces downtime in industrial applications.
Tip:
A 12-month manufacturer's warranty applies to all planetary gear reducers.
Warranty coverage activates upon the purchase date documented in the sales receipt.
Proof of purchase in the form of the original invoice is mandatory for warranty claims.
Services performed after warranty expiration require payment of applicable fees.
Units no longer under warranty qualify for our paid repair services.
Our technical support team provides continuous assistance regardless of warranty status.
If you need special customization or have requirements for delivery time, please contact Sales manager email: chenyuetech@gmail.com, Watsapp: +86 132 7517 8089
Superior Power Transmission
The PHL115 Series Planetary Gearbox ensures smooth power delivery thanks to its high-efficiency planetary gearing system. This arrangement minimizes energy loss and allows for higher torque transmission, making it a reliable choice for industrial machinery requiring consistent performance.
Industrial-Grade Durability
Constructed with robust materials and precision engineering, the PHL115 Series gearbox is suitable for rigorous industrial environments. Its 244 mm length and compact 170x170 mm build ensure it fits seamlessly into various machine setups, providing long-term reliability and minimal maintenance requirements.
FAQ's of PHL115 Series L1/L2 Planetary Gearbox 22mm Input Shaft 32mm Output Shaft:
Q: How is the PHL115 Series Planetary Gearbox installed in industrial machinery?
A: The gearbox can be easily mounted onto industrial equipment by aligning the 22mm input shaft and 32mm output shaft with the corresponding drive components. Secure attachments ensure smooth power transfer and system stability during operation.Q: What benefits does the planetary gearing arrangement provide?
A: The planetary arrangement enhances torque capacity, delivers uniform load distribution, and allows for compact design. This results in high efficiency, smooth operation, and a longer service life for the gearbox.Q: Where is the PHL115 Series Gearbox manufactured and supplied from?
A: This planetary gearbox is manufactured and supplied by a reputable company based in China, ensuring strict quality standards and reliable global delivery.Q: What are the typical industrial applications for this gearbox model?
A: With its high output torque (220-300 Nm) and efficiency, the PHL115 Series is commonly used in heavy machinery, conveyor systems, robotics, and equipment requiring precise speed and torque control.Q: When should I consider using the PHL115 Series Gearbox for my system?
A: Choose this gearbox when your application demands high torque transmission, efficient performance, and a robust, compact form factor to fit existing machine configurations.Q: What is the efficiency level of the PHL115 Series Planetary Gearbox?
A: This gearbox is engineered for high efficiency, reducing energy loss and maximizing power transmission to meet industrial performance standards.Q: How do I maintain the gearbox to ensure optimal operation?
A: Regular maintenance includes checking lubrication levels, inspecting for wear on gears and shafts, and ensuring tight, secure mounting. Following the manufacturer's guidelines helps extend gearbox life.Tell us about your requirement
