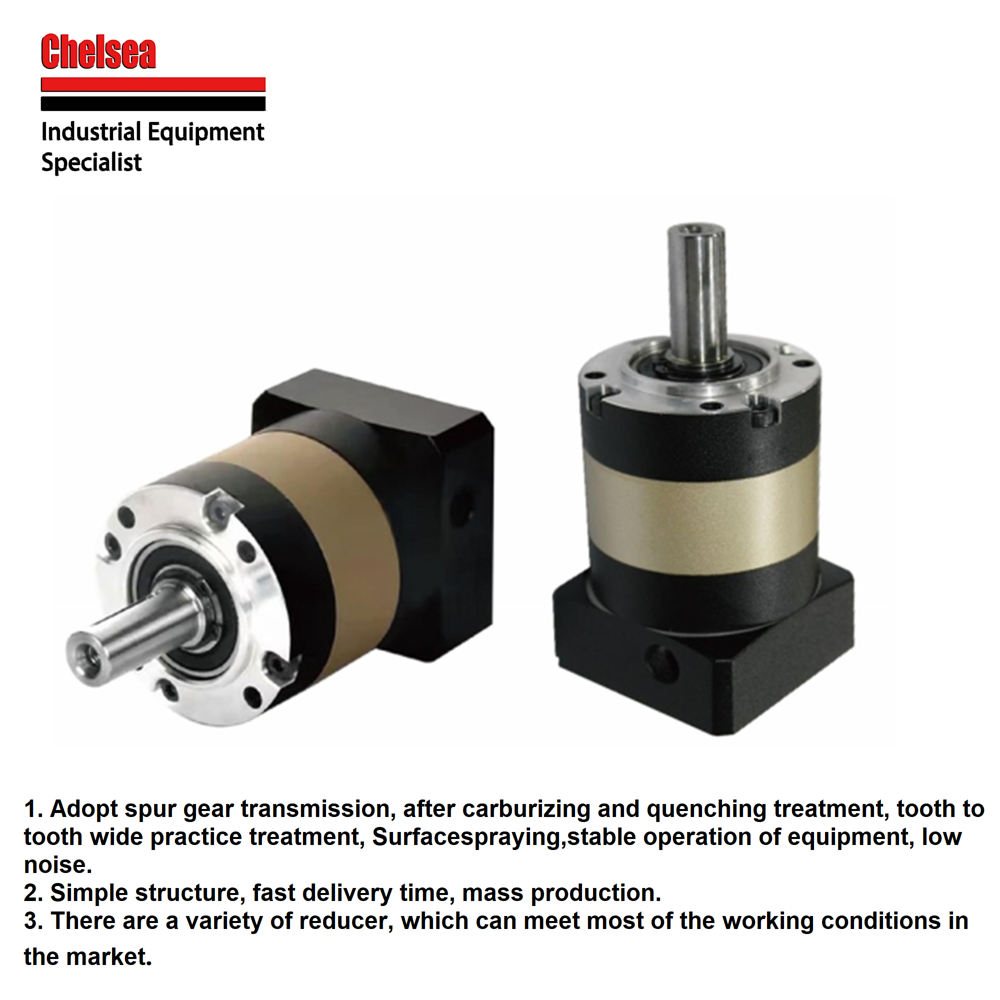

PLE120 Heavy Duty Planetary Gearbox High Efficiency Power Transmission for Industrial Machinery & Automation System
73.99 USD ($)/Piece
Product Details:
- Gear Type Spur Gears
- Usage Industrial

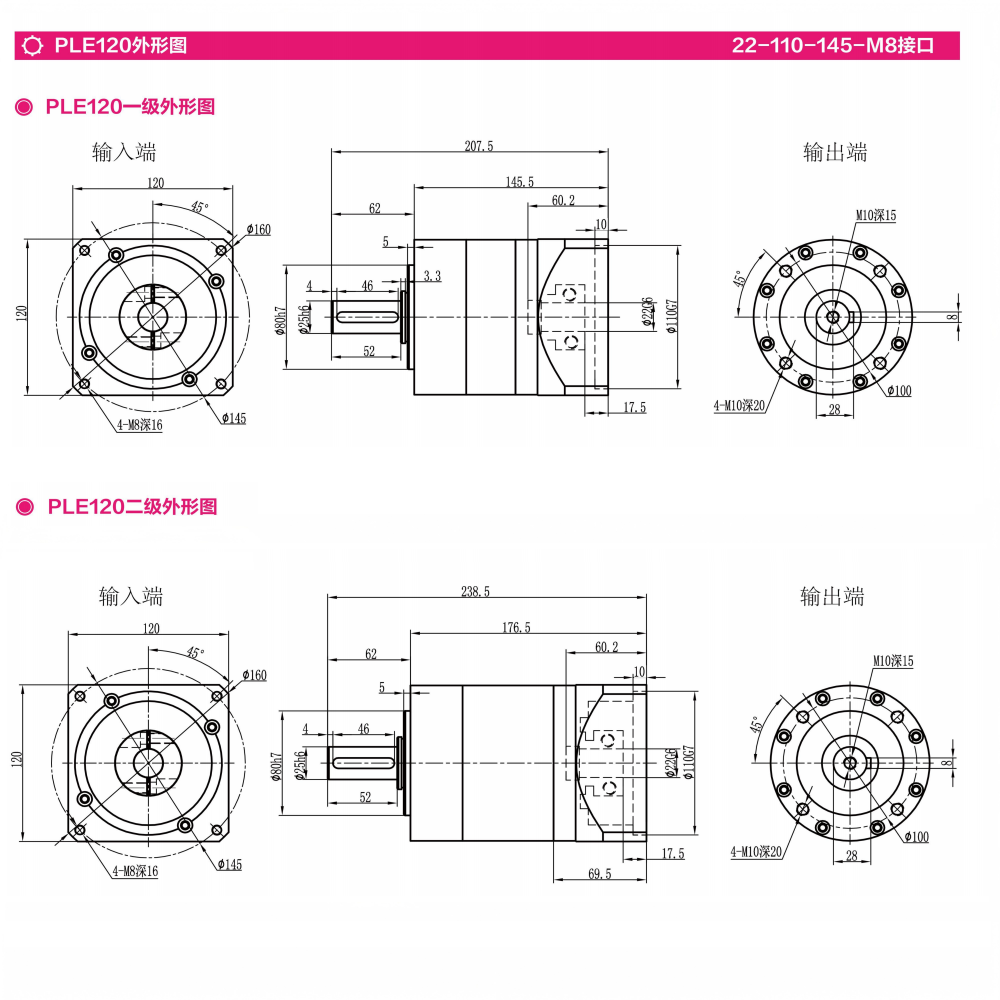

- Size 288.5*170*170
- Processing Type Die Casting
- Height 170 Millimeter (mm)
- Product Type PLE120 planeatry gearbox
- Gearing Arrangement Planetary
- Click to View more
X
PLE120 Heavy Duty Planetary Gearbox High Efficiency Power Transmission for Industrial Machinery & Automation System Price And Quantity
- 73.99 - 92.99 USD ($)/Piece
- 1 Piece
- 73.99 USD ($)/Piece

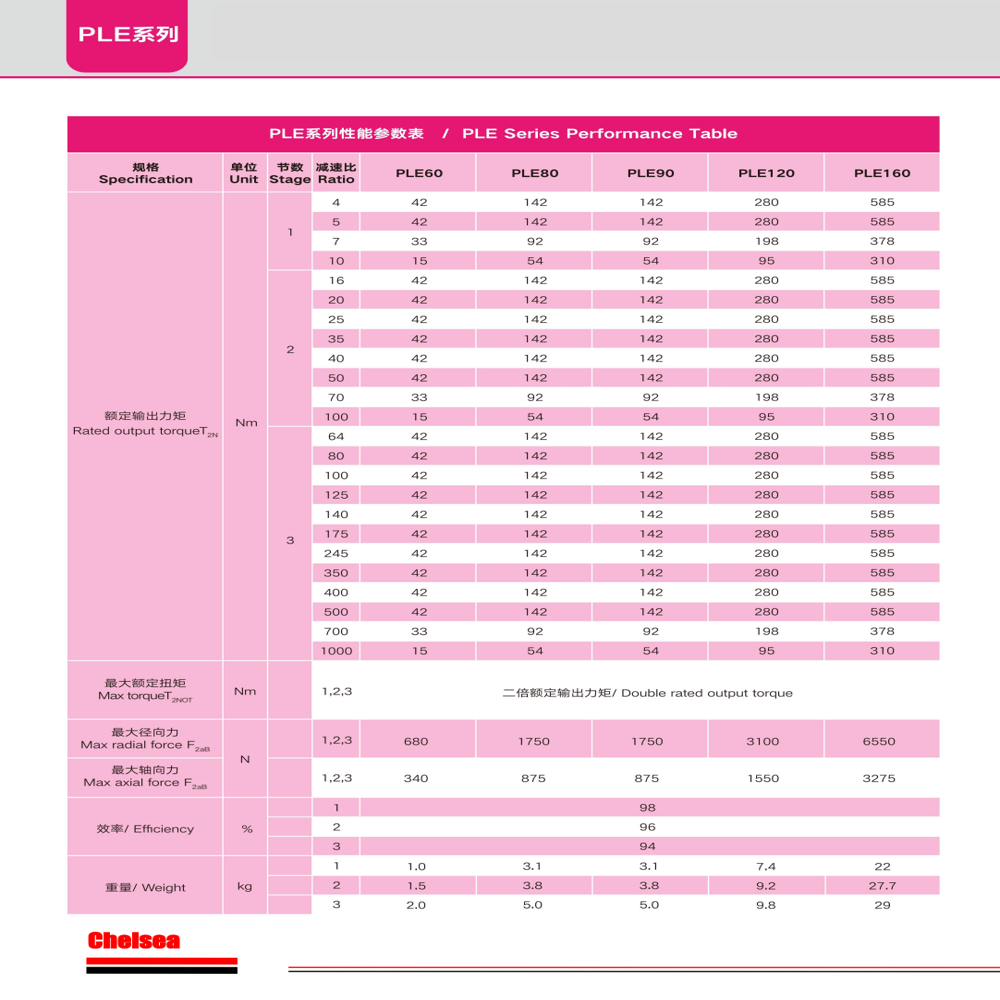

PLE120 Heavy Duty Planetary Gearbox High Efficiency Power Transmission for Industrial Machinery & Automation System Product Specifications
- PLE120 planeatry gearbox
- 288.5*170*170
- Planetary
- 170 Millimeter (mm)
- Spur Gears
- 95-280 N-m
- Die Casting
- 170 Millimeter (mm)
- 30-750 RPM
- High
- 3000 RPM
- 9.2 Kilograms (kg)
- Industrial
- See Picture
- 288.5 Millimeter (mm)
PLE120 Heavy Duty Planetary Gearbox High Efficiency Power Transmission for Industrial Machinery & Automation System Trade Information
- Qingdao,Shanghai,Lianyungang
- Paypal, Delivery Point (DP), Telegraphic Transfer (T/T), Letter of Credit (L/C)
- 30000 Piece Per Month
- 3 Days
- No
- Contact us for information regarding our sample policy
- Carton
- North America, Eastern Europe, Africa, South America, Western Europe, Middle East, Asia, Australia, Central America
- All India
- RoHS/CE/IAF/CNAS/ISO9001/ISO45001/ISO14001
Product Description
Key Features:-
The PLE120 planetary gearbox delivers exceptional torque capacity for demanding industrial applications.
-
Precision engineeredplanetarygears provide quiet performance with minimal vibration under heavy loads.
-
The rugged housing is constructed from high-grade cast iron for maximum durability and impact resistance.
-
Integrated cooling fins maintain optimal operating temperatures during continuous use.
-
Features multiple mounting positions for flexible installation in various configurations.
-
Comes with permanent lubrication and sealed bearings for maintenance-free operation.
-
Input size:22mm
-
Output size:25mm
-
Ratio Range: 4:1, 100:1
-
Delivery Time: 1-3Days
-

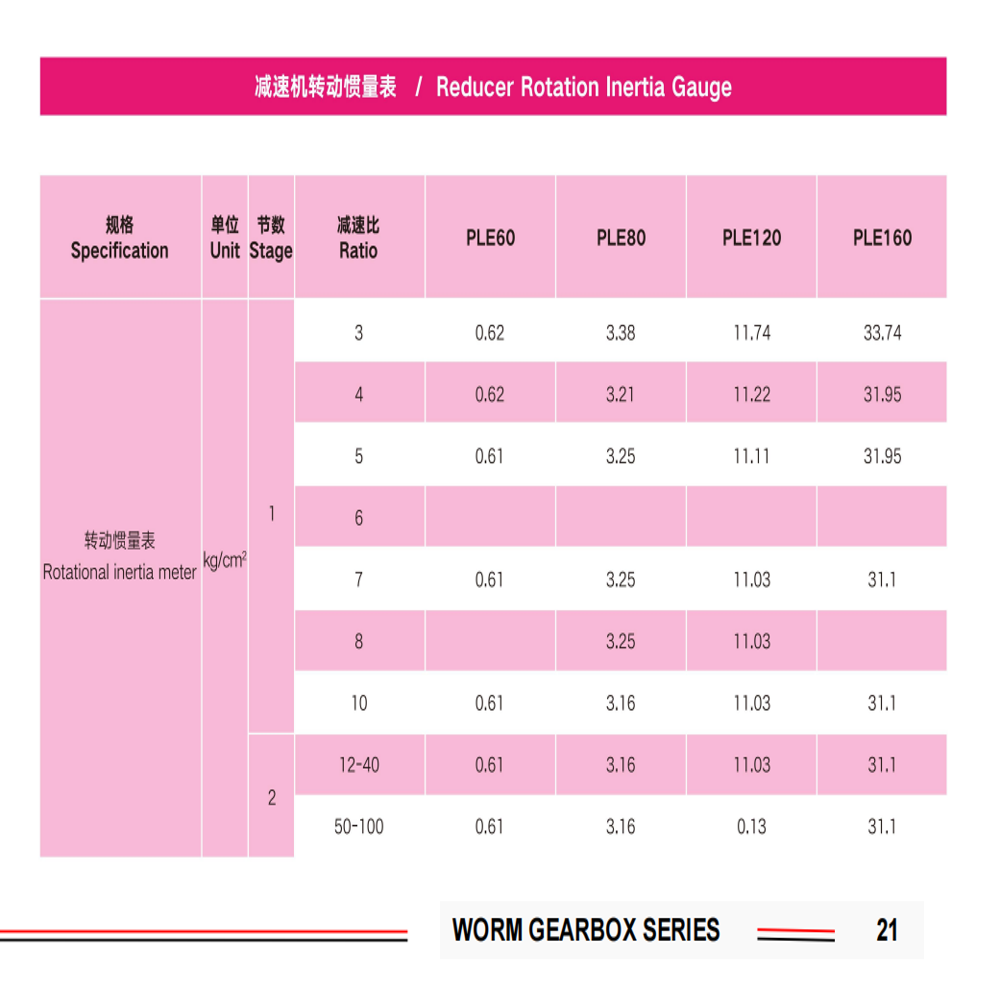

Rotational Inertia range:0.13-11.74kgcm
-
'
Key Benefits:
-
Dramatically increases machinery efficiency with 96%+ power transmission efficiency.
-
Reduces energy costs through optimized gear design that minimizes power loss.
-
Withstands extreme operating conditions including heavy shock loads and continuous duty cycles.
-
Saves maintenance time and costs with permanently lubricated, sealed bearing system.
-
Extends equipment service life by reducing stress on motors and driven components.
-
TIP:
- The Gear Planetary Reducer is warranted for one year.
- The starting date of the warranty period is subject to the date of the product invoice, please present the invoice when repairing.
- Beyond the warranty period or does not belong to the free warranty products, the company's maintenance center is still dedicated to serve you.
- If you need special customization or have requirements for delivery time, please contact Sales manager email: chenyuetech@gmail.com, Watsapp: +86 132 7517 8089
Superior Gearing Arrangement for Performance
With an advanced planetary configuration and high-quality spur gears, the PLE120 gearbox ensures strong, consistent power transmission. The planetary setup efficiently distributes load, offering stability and higher torque output, making it a trusted choice for machinery and automation systems that demand reliability.
Built for Heavy Industrial Usage
Crafted through precision die casting, the PLE120 boasts outstanding durability and longevity under rigorous industrial environments. Its compact size enables straightforward integration, while the robust construction reduces operational downtime and maintenance needs.
Efficiency and Versatility in Operation
Delivering high efficiency even at output speeds between 30 and 750 RPM, the gearbox stands out for its adaptability. This design accommodates diverse industrial automation processes, ensuring performance under varied operational loads and speeds.
FAQ's of PLE120 Heavy Duty Planetary Gearbox High Efficiency Power Transmission for Industrial Machinery & Automation System:
Q: How is the PLE120 Heavy Duty Planetary Gearbox integrated into industrial automation systems?
A: The PLE120 gearbox can be seamlessly mounted to machinery thanks to its standard dimensions and compact design. Its planetary gearing allows it to handle fluctuating loads, making it suitable for various automation equipment that requires precise speed and torque control.Q: What makes the planetary gearing arrangement beneficial for power transmission?
A: Planetary gearing distributes forces evenly across multiple gears, resulting in higher torque output, enhanced stability, and greater efficiency compared to traditional arrangements. This allows the PLE120 to perform consistently, even under heavy loads.Q: When should I consider using the PLE120 gearbox in my operations?
A: This gearbox is ideal when your industrial machinery requires reliable high torque at variable output speeds-from 30 to 750 RPM-with minimal energy loss, particularly in automation scenarios where precision and durability are paramount.Q: Where is the PLE120 gearbox manufactured and supplied from?
A: The PLE120 Heavy Duty Planetary Gearbox is manufactured and supplied in China, ensuring stringent quality control and prompt shipment for industrial clients worldwide.Q: What is the process used to construct the PLE120 gearbox, and why is it advantageous?
A: The gearbox is produced using advanced die casting techniques, creating a robust housing that enhances durability and maintains precise gear alignment. This construction method results in a reliable product with lower maintenance requirements.Q: How does the gearbox's high efficiency benefit industrial applications?
A: High efficiency in the PLE120 results in reduced energy loss during torque transmission, leading to lower operational costs, improved performance, and minimized heat generation-all critical factors for long-term industrial usage.Tell us about your requirement
