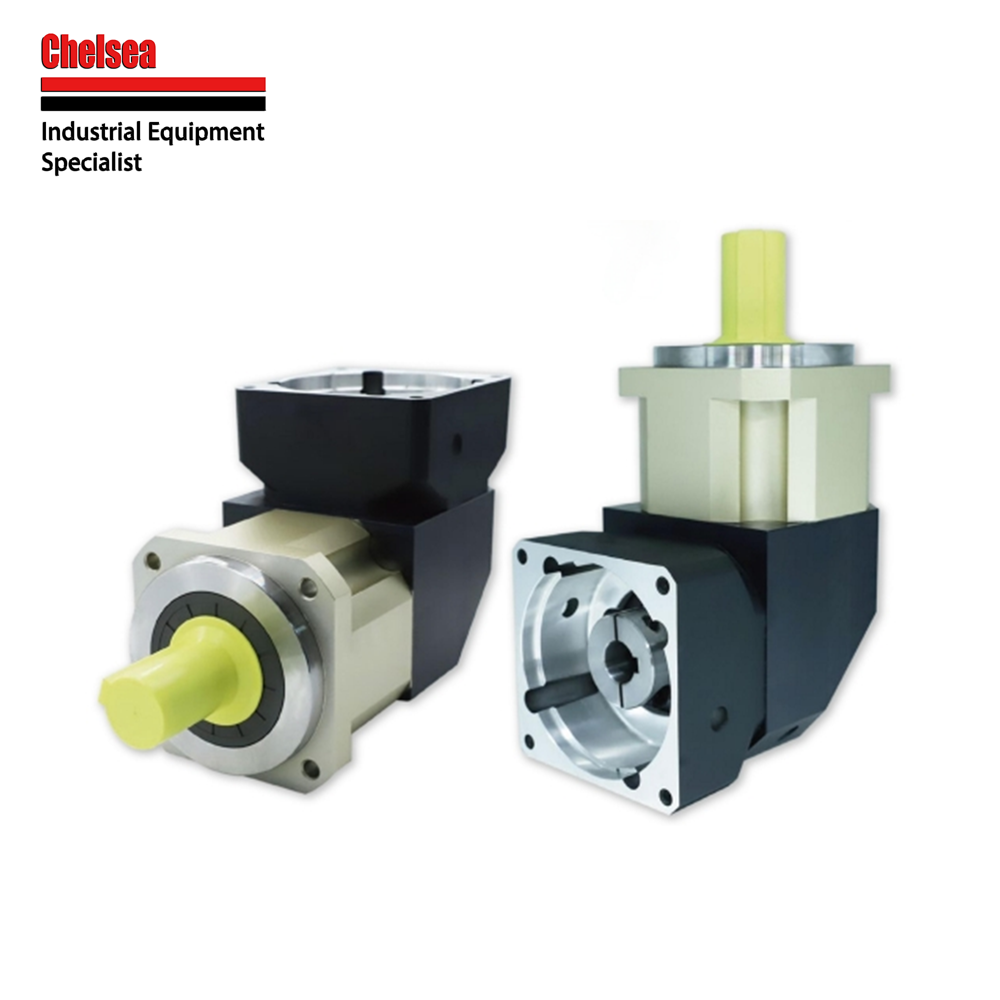

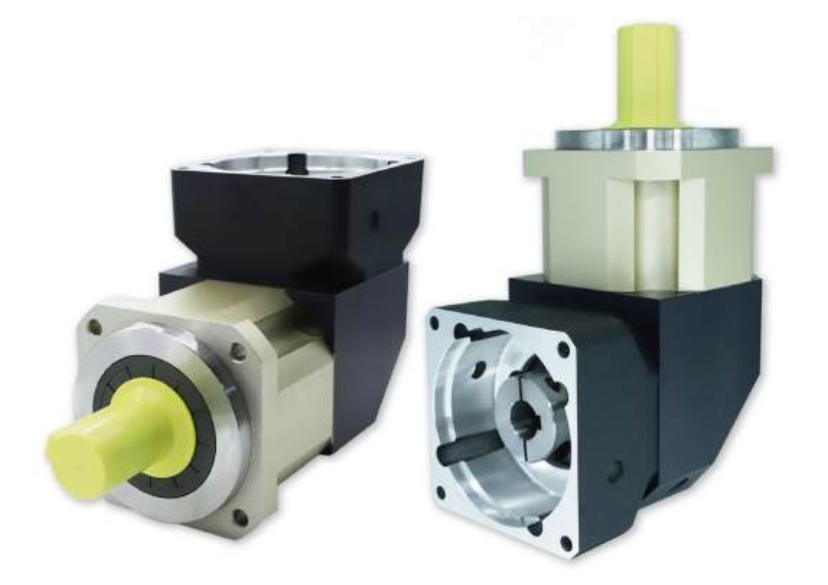

ZPLX142 Precision Planetary Drive Built for High Torque & Extreme Load Conditions
Product Details:
- Usage Industrial
- Material Other

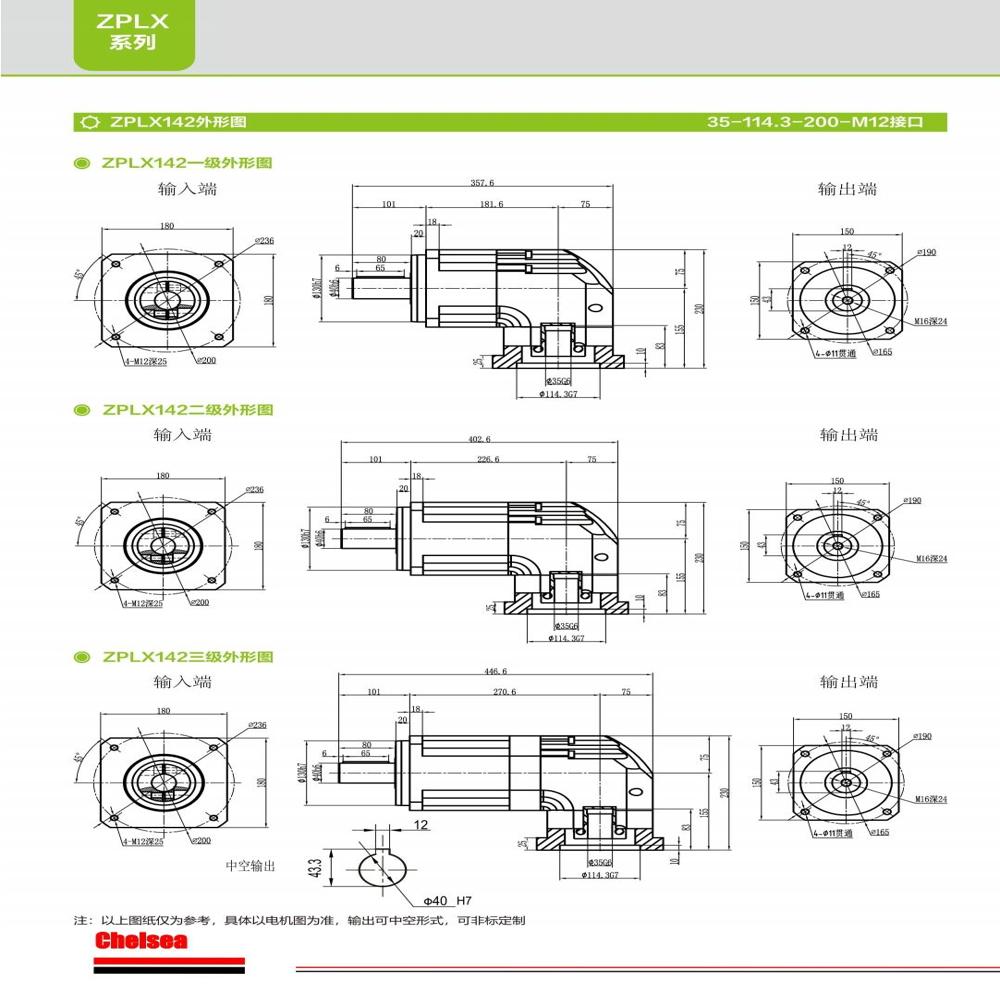

- Size 397.6*270*220
- Processing Type Die Casting
- Gear Tooth Profile Other
- Height 270 Millimeter (mm)
- Product Type Planetary gearbox, ZPLX142
- Click to View more
ZPLX142 Precision Planetary Drive Built for High Torque & Extreme Load Conditions Price And Quantity
- 350.99 USD ($)/Piece
- 1 Piece
- 350.99 - 406.99 USD ($)/Piece
ZPLX142 Precision Planetary Drive Built for High Torque & Extreme Load Conditions Product Specifications
- See Picture
- 270 Millimeter (mm)
- Other
- Industrial
- 397.6*270*220
- Planetary

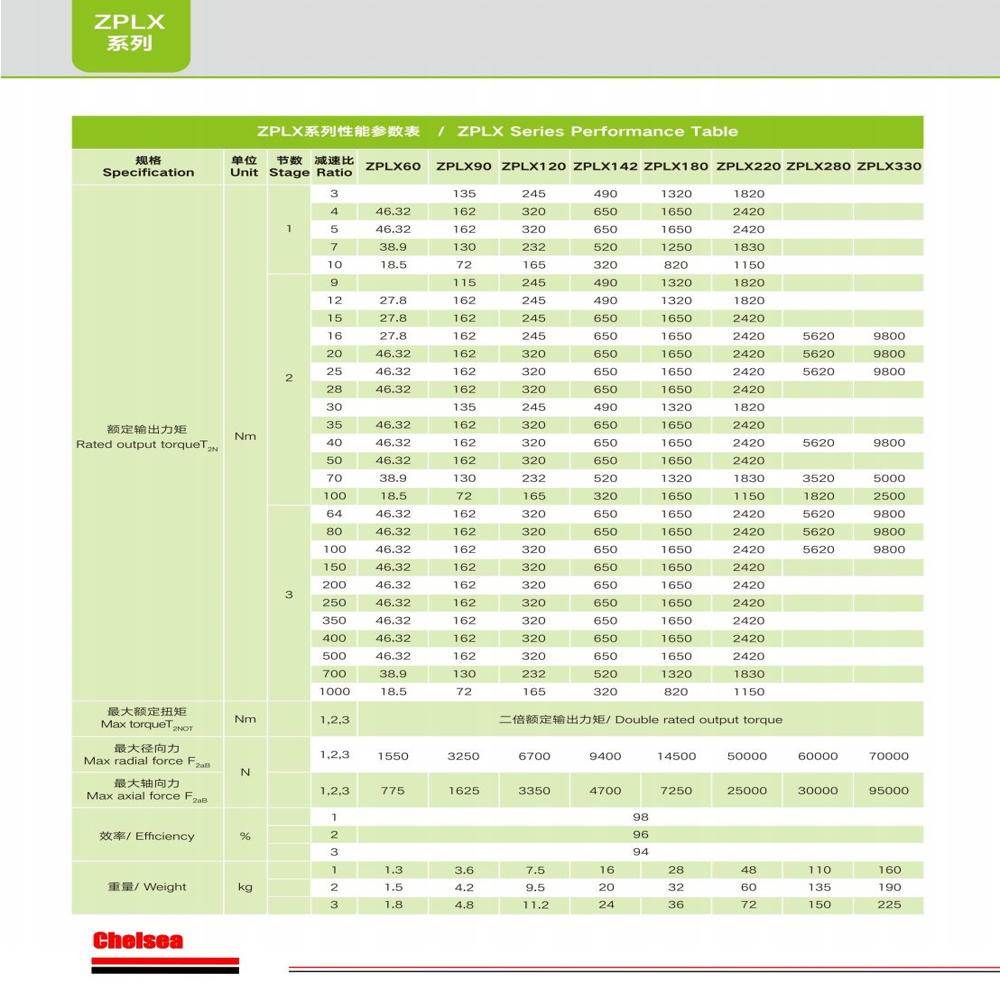

- 650 N-m
- 397.6 Millimeter (mm)
- Other
- Planetary gearbox, ZPLX142
- High
- Die Casting
- 36.5 Kilograms (kg)
- 220 Millimeter (mm)
ZPLX142 Precision Planetary Drive Built for High Torque & Extreme Load Conditions Trade Information
- Qingdao,Shanghai,Lianyungang
- Telegraphic Transfer (T/T), Letter of Credit (L/C), Paypal, Delivery Point (DP)
- 30000 Piece Per Month
- 3 Days
- Contact us for information regarding our sample policy
- Carton
- Asia, Australia, Central America, North America, Eastern Europe, Western Europe, Middle East, Africa, South America
- All India
- RoHS/CE/IAF/CNAS/ISO9001/ISO45001/ISO14001
Product Description

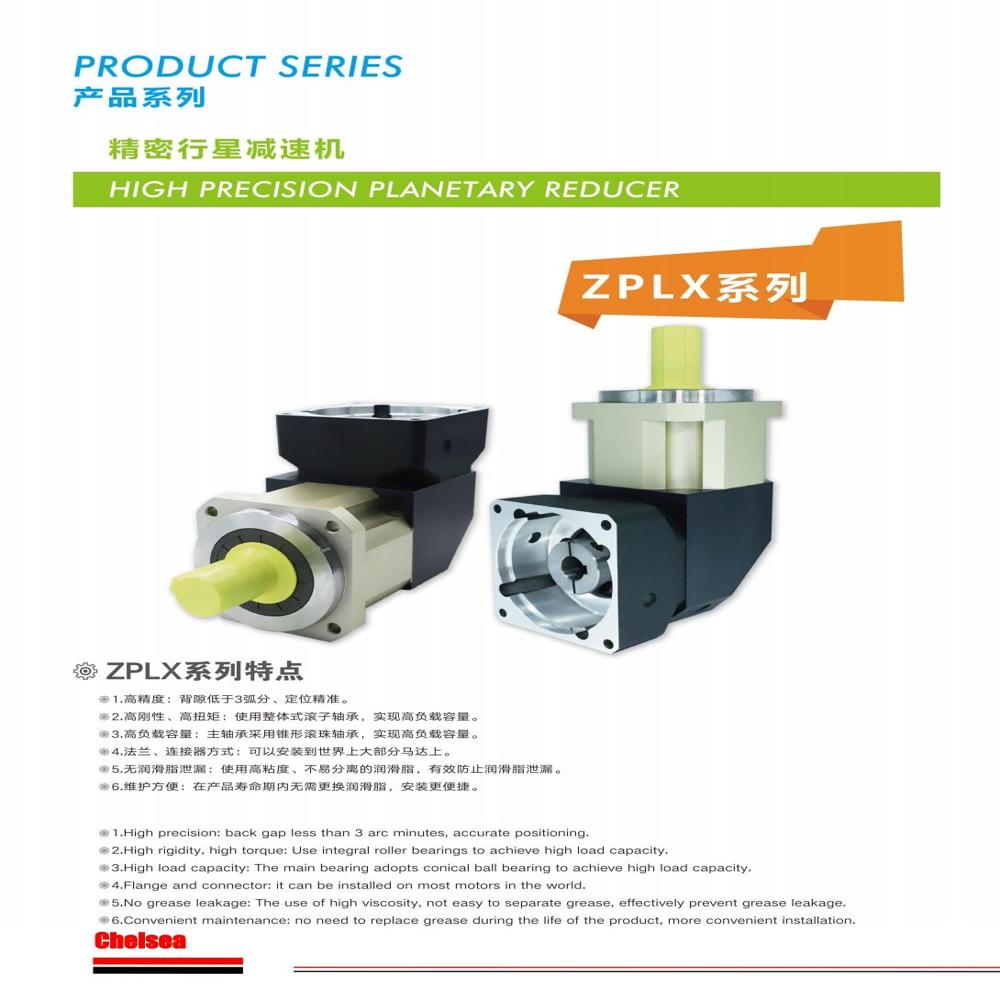

Key Features:
-
Our planetary gear system achieves exceptional motion transfer accuracy through micron-level manufacturing tolerances.
-
The reinforced housing structure maintains dimensional stability under maximum rated loads.
-
Engineered to deliver industry-leading rotational force for demanding machinery applications.
-
Integrated mounting flange provides vibration-resistant connection points.
-
Multi-labyrinth sealing system guarantees complete lubricant retention.
-
Aerospace-grade metallurgy ensures extended operational lifespan.
-
Computer-optimized gearing geometry minimizes acoustic emissions.
-
Specialized coating protects against chemical and environmental degradation.
-
Input size:35mm
-
Output size:40mm
-

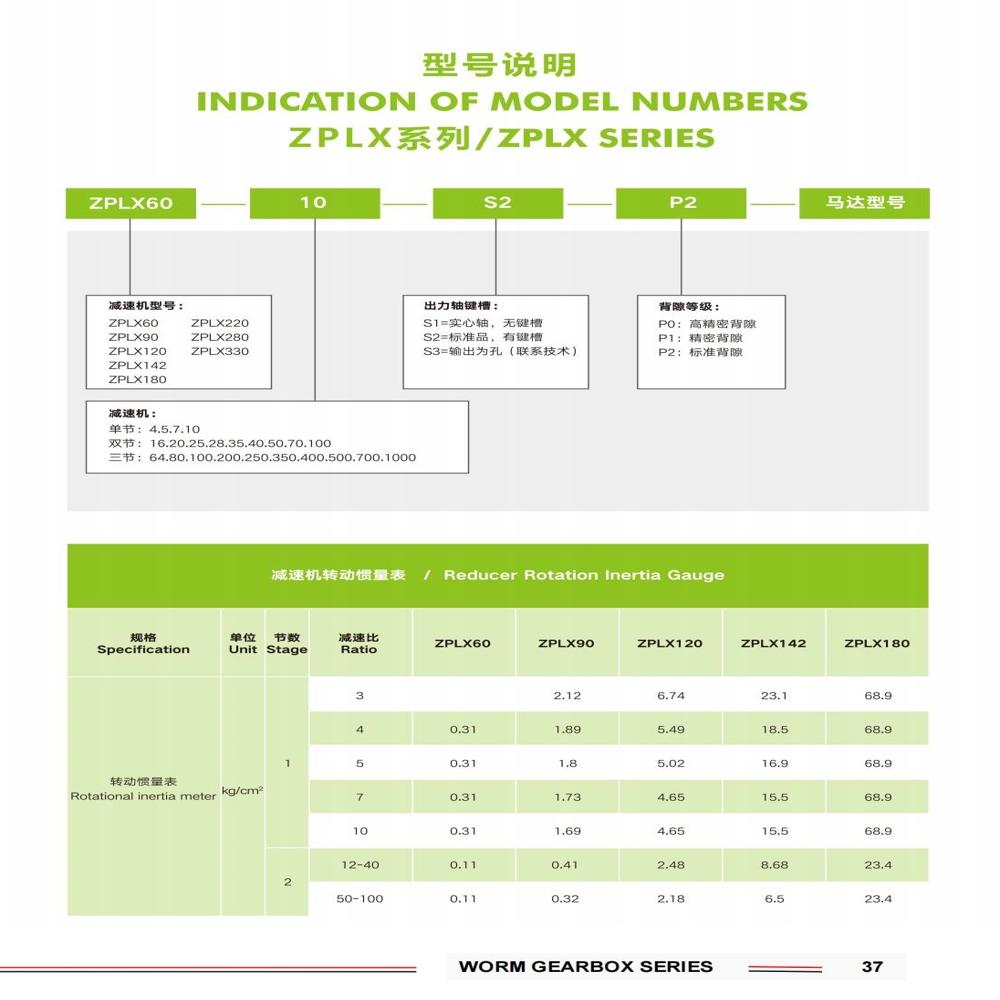

Rotational Inertia:6.5-23.1kgcm
-
Ratio:3:1,100:1
Key Benefits:
-
Provides exact positioning repeatability for precision automation systems.
-
Maintains full operational capacity at peak loading conditions.
-
Eliminates maintenance intervals through sealed lubrication.
-
Performs consistently in extreme temperature and contamination environments.
-
Offers flexible mechanical interface solutions for various mounting scenarios.
-
A 12-month manufacturer's warranty applies to all planetary gear reducers.
-
Warranty coverage activates upon the purchase date documented in the sales receipt.
-
Proof of purchase in the form of the original invoice is mandatory for warranty claims.
-
Services performed after warranty expiration require payment of applicable fees.
-
Units no longer under warranty qualify for our paid repair services.
-
Our technical support team provides continuous assistance regardless of warranty status.
-
If you need special customization or have requirements for delivery time, please contact Sales manager email: chenyuetech@gmail.com, Wattsapp: +86 132 7517 8089
Engineered for Extreme Conditions
The ZPLX142 Precision Planetary Drive is built to handle the toughest industrial demands, accommodating high torque and extreme loads with remarkable stability. Its die-cast construction provides durability, while the advanced planetary gearing arrangement ensures smooth and efficient power transmission even under significant strain.
Versatile Applications Across Industries
This precision drive unit is suitable for a breadth of heavy-duty industrial applications, from manufacturing lines to material handling systems. With its impressive dimensional design and robust build, the ZPLX142 meets the rigorous standards required in modern industry, ensuring performance and longevity in continuous operations.
FAQ's of ZPLX142 Precision Planetary Drive Built for High Torque & Extreme Load Conditions:
Q: How does the ZPLX142 Precision Planetary Drive handle extreme load conditions?
A: The ZPLX142 utilizes a robust die casting process and advanced planetary gearing arrangement to efficiently distribute load and manage high output torque, ensuring reliable operation even under extreme conditions.Q: What industries can benefit from using the ZPLX142 planetary drive?
A: The ZPLX142 is ideal for various industrial sectors, including manufacturing, automation, material handling, and any application that demands high torque and efficiency in a compact footprint.Q: When should I choose a planetary drive like the ZPLX142 over other gear options?
A: You should opt for the ZPLX142 when your application requires a combination of high torque, extreme load-bearing capacity, and efficient power transmission in a space-saving design.Q: Where is the ZPLX142 manufactured and supplied from?
A: The ZPLX142 Precision Planetary Drive is manufactured and distributed by reputable suppliers based in China, ensuring high-quality standards and reliable supply chains.Q: What process is used to manufacture the ZPLX142 planetary drive?
A: This planetary drive is produced using a die casting process that results in precise, durable components capable of withstanding rigorous industrial use.Q: How is the ZPLX142 typically used in industrial settings?
A: The ZPLX142 is commonly integrated into heavy-duty machinery, conveyors, and equipment where consistent high torque and load handling are essential to operational efficiency.Q: What are the benefits of choosing the ZPLX142 for your operation?
A: Choosing the ZPLX142 provides advantages such as enhanced durability, high transmission efficiency, reliable torque output, and a compact, rugged design ideal for demanding industrial environments.
