29.99 USD ($)/Piece
Get a Price/Quote

Product Details:

  • Usage Industrial
  • Size 20.5*17.5*22.5
  • Height 22.5 Centimeter (cm)
  • Product Type CYRV30 0.18 KW Worm Gearbox
  • Weight 1.9 Kilograms (kg)
  • Color blue,green,gray
  • Output Torque 5N m-21N m N-m
  • Click to View more
Request to Call Back Send Inquiry
X

CHENYUE High Torque Worm Gearbox NMRV 30 CYRV30 Gearbox Input 9/11mm Output 14mm Speed Ratio from 5:1 to 80:1 Free Maintenance Price And Quantity

  • 29.99 USD ($)/Piece
  • 3 Piece

CHENYUE High Torque Worm Gearbox NMRV 30 CYRV30 Gearbox Input 9/11mm Output 14mm Speed Ratio from 5:1 to 80:1 Free Maintenance Product Specifications

  • Industrial
  • 20.5 Centimeter (cm)
  • 20.5*17.5*22.5
  • blue,green,gray
  • 0.06kW-0.18kW
  • 17.5 Centimeter (cm)
  • CYRV30 0.18 KW Worm Gearbox
  • 5N m-21N m N-m
  • 22.5 Centimeter (cm)
  • 1400rpm RPM
  • 17.5rpm-280rpm RPM
  • High
  • 1.9 Kilograms (kg)

CHENYUE High Torque Worm Gearbox NMRV 30 CYRV30 Gearbox Input 9/11mm Output 14mm Speed Ratio from 5:1 to 80:1 Free Maintenance Trade Information

  • Qingdao,Shanghai,Lianyungang
  • Paypal, Delivery Point (DP), Telegraphic Transfer (T/T), Letter of Credit (L/C)
  • 30000 Piece Per Month
  • 3 Days
  • Contact us for information regarding our sample policy
  • Carton+Catalogue+Manual+PE Plastic Bag+QC Certificate+Anti-bump Filler+Desiccant+Engineering Plastic Tray
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • All India
  • CE/RoHS/IAF/CNAS/ISO9001/ISO45001/ISO14001

Product Description

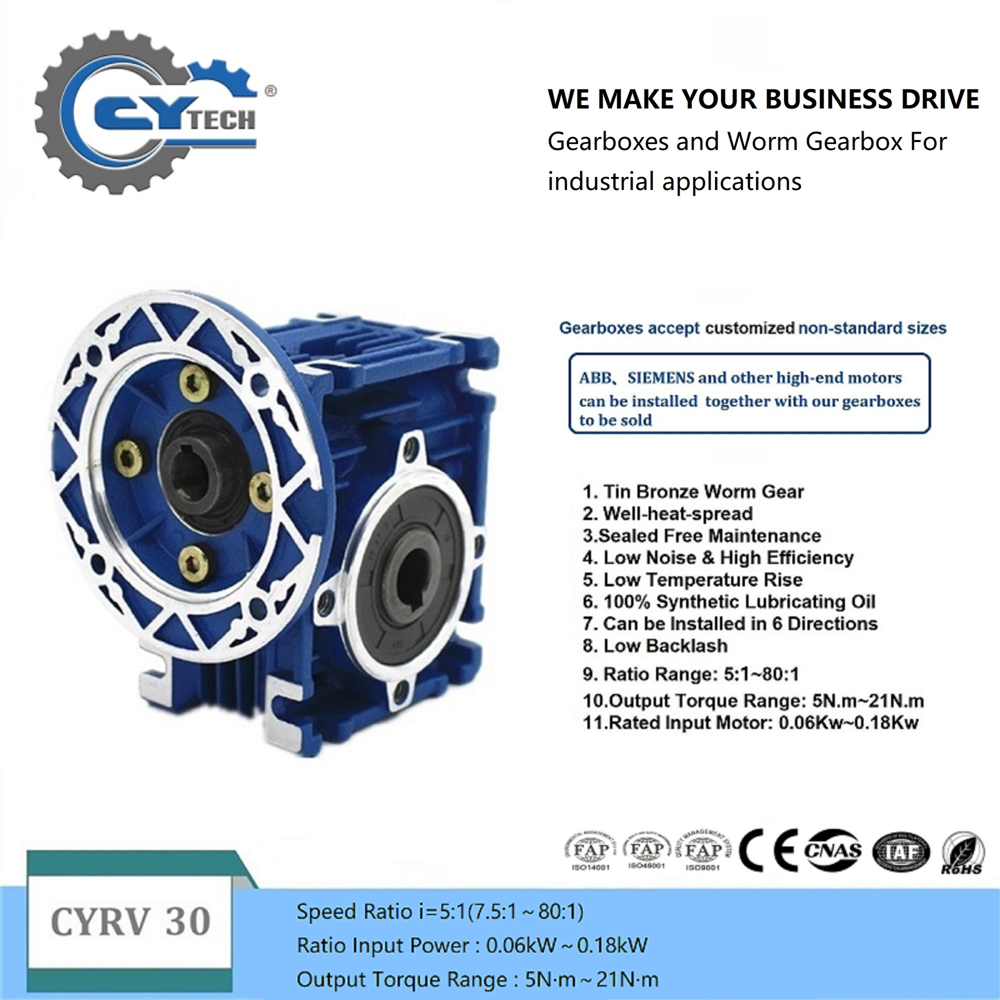

Key features
ABBSIEMENS and other high-end motors can be installed together with our gearboxes to be sold
Factory outlet, provide video-outgoing inspection
Speed ratio range: from 5:1 to 80:1, extra cost for ratio 5:1 is 10 USD/PC.

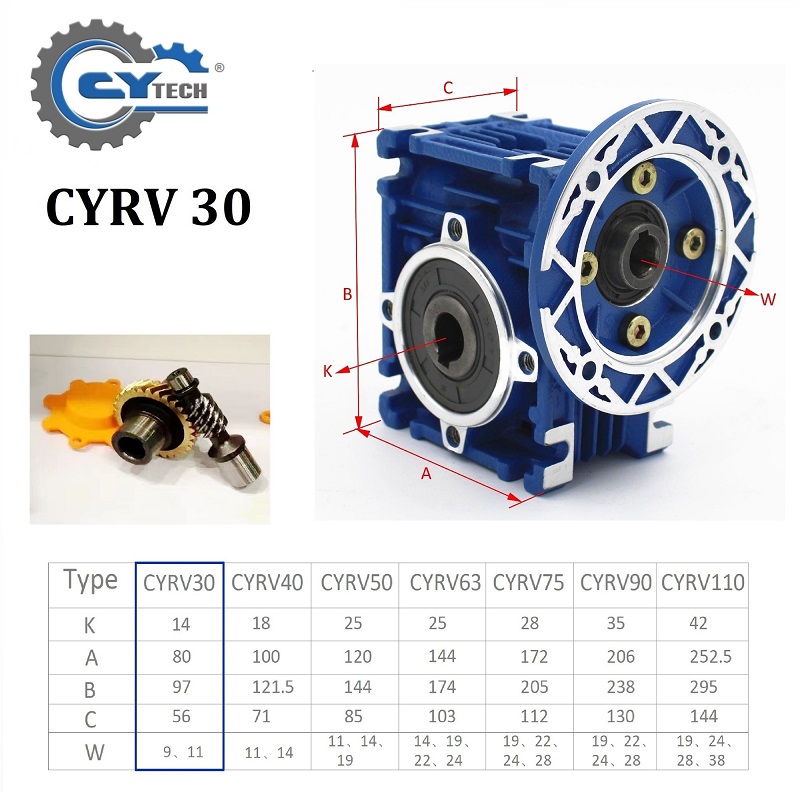

Input shaft/hole: 9/11 mm
Output shaft/hole: 14 mm
Rated input motor speed: 1400 rpm
Rated output motor speed: 17.5 rpm--280 rpm
Colors: Blue or gray or green or according to customer required
Die-cast aluminum alloy housing
Worm wheel adopts high quality Tin Bronze
Certification: CE/RoHS/IAF/CNAS/ISO9001/ISO45001/ISO14001
Bipolar reducers: available
Flange: round or square
Output Torque: 5-21 N.m
Input Power Max: 0.06 Kw-0.18 Kw
Mounting orientation: B3 B6 B7 B8 V5 V6
Delivery time: 45 days
Approximate gross weight: 1.9 Kg/pc
Key benefits
Maintenance-free, fully sealed(no need fill oil for whole life)
Good heat dissipation
Low temperature rise
Low noise, smooth operation
Long service life and more durability
Energy saving and high efficiency
Can be installed in any position and in all directions
Built-in fully synthetic lubricant
Tip:
The whole Worm Drive Gearbox is warranted for one year.
 The starting date of the warranty period is subject to the date of the product invoice, please present the invoice when repairing.
Beyond the warranty period or does not belong to the free warranty products, the company's maintenance center is still dedicated to serve you.
If you need special customization or have requirements for delivery time, please contact sales manager: chenyuetech@gmail.com, WhatsApp: +86 15221517542 Service: +86 400 019 2928
