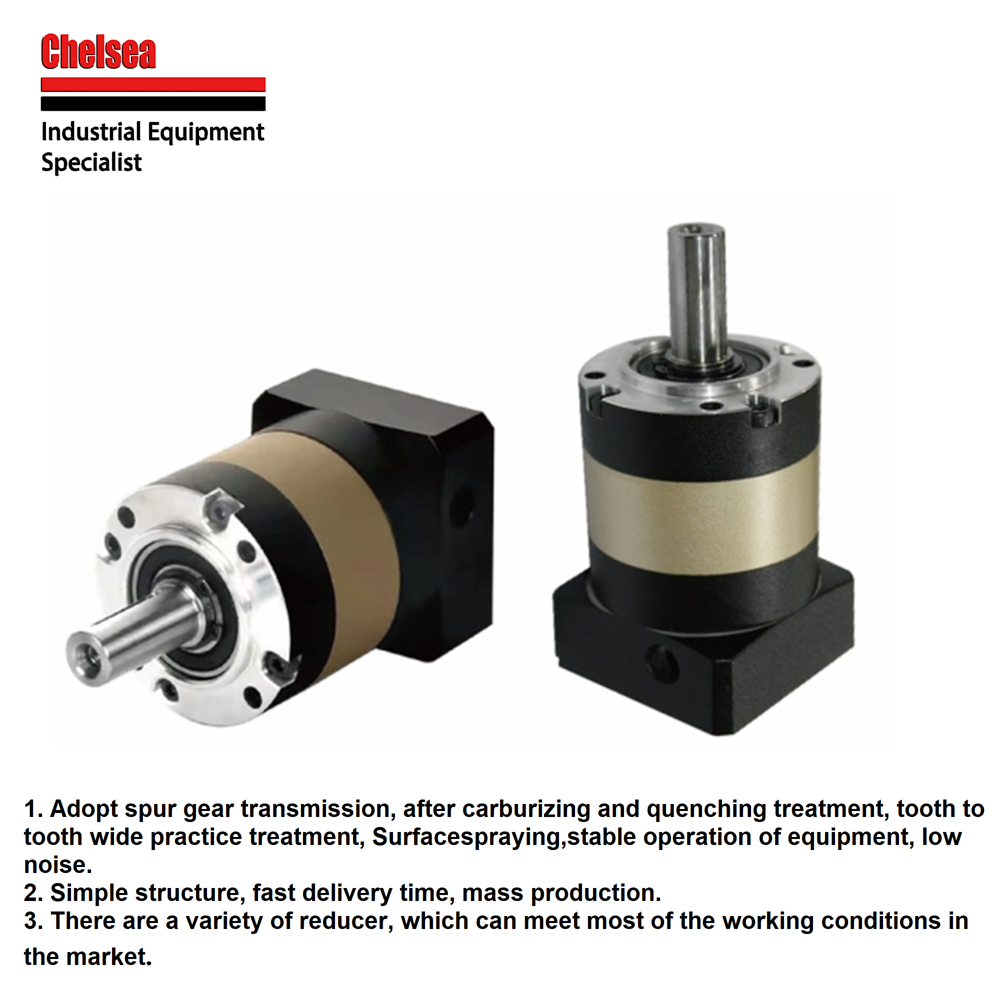

PLE90 Planetary Gearbox High Torque Precision Gearbox for Industrial & Heavy Duty Applications
40.99 USD ($)/Piece
Product Details:
- Usage Industrial
- Gear Type Spur Gears
- Processing Type Die Casting

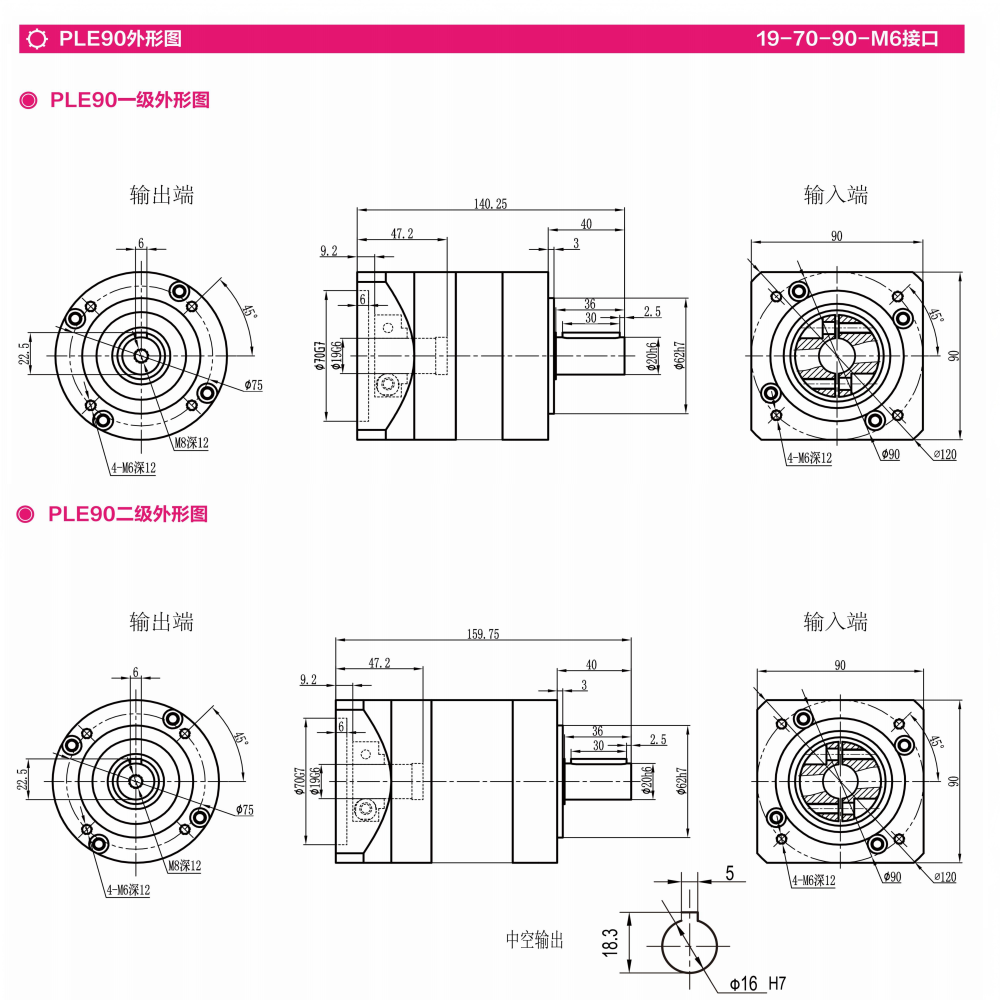

- Size 210*140*140
- Height 140 Millimeter (mm)
- Gear Tooth Profile Other
- Product Type PLE90 Planetary gearbox
- Click to View more
X
PLE90 Planetary Gearbox High Torque Precision Gearbox for Industrial & Heavy Duty Applications Price And Quantity
- 1 Piece
- 40.99 - 55.99 USD ($)/Piece
- 40.99 USD ($)/Piece

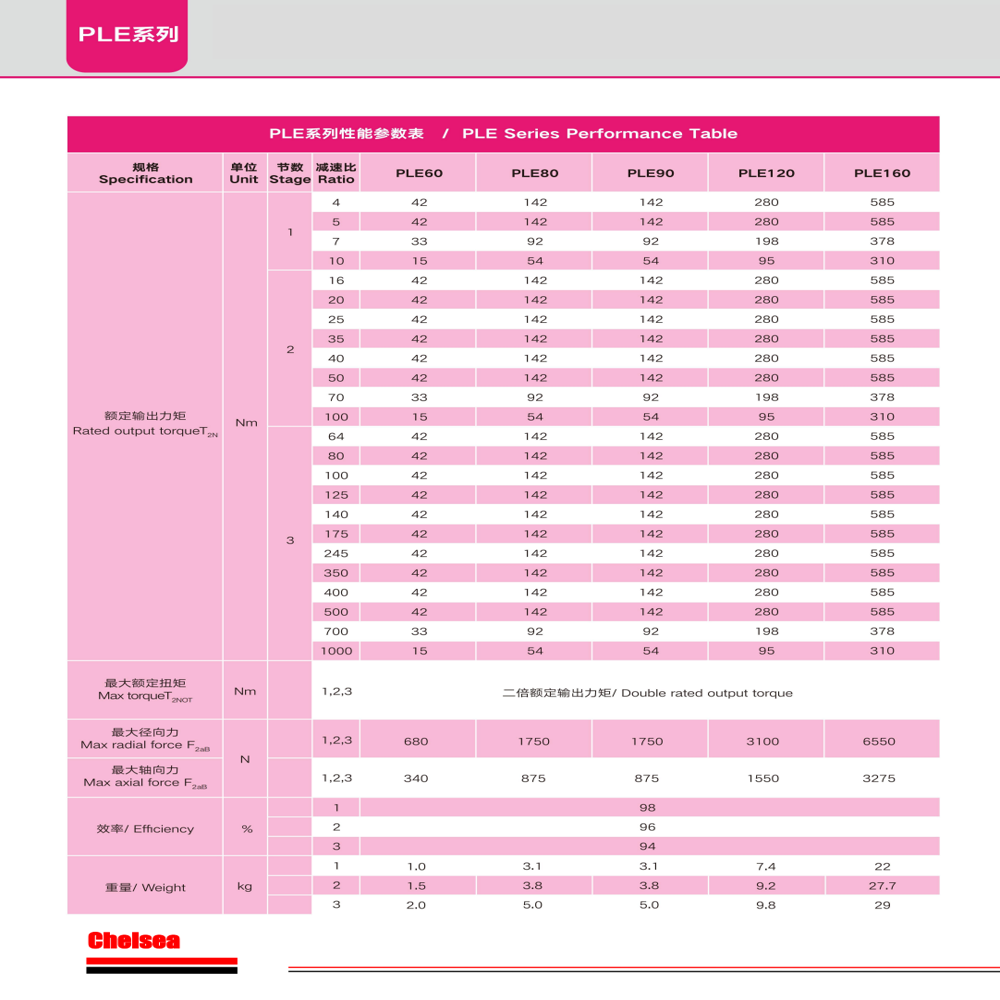

PLE90 Planetary Gearbox High Torque Precision Gearbox for Industrial & Heavy Duty Applications Product Specifications
- Industrial
- PLE90 Planetary gearbox
- High
- 3500 RPM
- 35-875 RPM
- 4 Kilograms (kg)
- Other
- 140 Millimeter (mm)
- 210*140*140
- Planetary
- 210 Millimeter (mm)
- 140 Millimeter (mm)
- Spur Gears
- 54-142 N-m
- Die Casting
- See Picture
PLE90 Planetary Gearbox High Torque Precision Gearbox for Industrial & Heavy Duty Applications Trade Information
- Qingdao,Shanghai,Lianyungang
- Paypal, Delivery Point (DP), Telegraphic Transfer (T/T), Letter of Credit (L/C)
- 30000 Piece Per Month
- 3 Days
- No
- Contact us for information regarding our sample policy
- Carton
- Asia, Australia, South America, Western Europe, Middle East, Eastern Europe, Africa, Central America, North America
- All India
- RoHS/CE/IAF/CNAS/ISO9001/ISO45001/ISO14001
Product Description
Key Feature:- The PLE90 planetary gearbox delivers superior torque transmission for demanding mechanical systems.
- Its multi-stage planetary gear design ensures smooth power distribution with minimal energy loss.
- Precision-machined helical gears provide quiet operation and reduced vibration.
- The hardened alloy steel construction offers exceptional durability under continuous heavy loads.
- Sealed bearings and high-grade lubricants extend service life with minimal maintenance.
- Compact flange-mounted design allows for easy integration into existing machinery.
- Corrosion-resistant housing protects internal components in harsh industrial environments.
- Input size:19mm
- Output size:20mm
- Ratio: 4:1,100:1
- Delivery time: 1-3 Days
Key Benefits:
- Increases machinery efficiency by delivering optimal power transmission.
- Reduces operational costs through energy-efficient performance.
- Minimizes downtime with rugged construction and reliable operation.
- Simplifies installation with standardized mounting configurations.
- Extends equipment lifespan by reducing wear on connected components.
Tip:
- The Gear Planetary Reducer is warranted for one year.
- The starting date of the warranty period is subject to the date of the product invoice, please present the invoice when repairing.
- Beyond the warranty period or does not belong to the free warranty products, the company's maintenance center is still dedicated to serve you.
- If you need special customization or have requirements for delivery time, please contact Sales manager email: chenyuetech@gmail.com, Watsapp: +86 132 7517 8089
High Torque, High Precision Performance
The PLE90 Planetary Gearbox delivers stable and efficient power transmission, suitable for machines and equipment operating under heavy loads. Its planetary design evenly distributes torque, reducing stress and increasing lifespan, while spur gears ensure smooth motion and accuracy.
Engineered for Industrial Reliability
Built through advanced die casting processes, this gearbox balances strength and weight. Its compact size fits into space-constrained environments without compromising performance, making it an optimal choice for manufacturers who value efficiency and reliability in critical operations.
Versatile Applications Across Industries
Thanks to its robust design and precise torque control, the PLE90 gearbox is widely used in industrial automation, robotics, material handling systems, and other heavy-duty equipment. The adaptable output speed and torque range maximize flexibility for various operational demands.
FAQ's of PLE90 Planetary Gearbox High Torque Precision Gearbox for Industrial & Heavy Duty Applications:
Q: How does the PLE90 Planetary Gearbox ensure high efficiency in heavy-duty applications?
A: The PLE90 Gearbox uses a planetary gearing arrangement, where load is distributed across multiple gears. This design minimizes energy loss and wear, delivering high efficiency even at input speeds up to 3500 RPM, ideal for continuous industrial operations.Q: What processing method is used in manufacturing the gearbox, and what are the benefits?
A: The gearbox is produced through a die casting process, resulting in a robust and precise housing. This method provides excellent dimensional stability, corrosion resistance, and durability, making it well-suited for harsh industrial settings.Q: When should you consider using a planetary gearbox like the PLE90?
A: A planetary gearbox is recommended when your application demands high torque output, compact installation, and consistent performance. It is especially relevant in industries with heavy loads or precision motion requirements, such as robotics and conveyor systems.Q: Where can the PLE90 Planetary Gearbox be applied?
A: This gearbox is versatile and is typically employed in sectors such as automated manufacturing, packaging, material transport, and even heavy-duty machinery in construction and mining due to its reliability under high stress and load conditions.Q: What are the main benefits of the spur gear type within this planetary gearbox?
A: Spur gears offer smooth and accurate transmission of power, reducing vibration and noise. Combined with planetary gearing, they enhance positional precision and maintain consistent performance under varying loads.Q: How do you integrate the PLE90 Gearbox into existing industrial systems?
A: The compact size and standardized mounting dimensions of the PLE90 make it straightforward to install in most setups. For best results, ensure compatibility with motor specifications and torque requirements before integration.Tell us about your requirement
