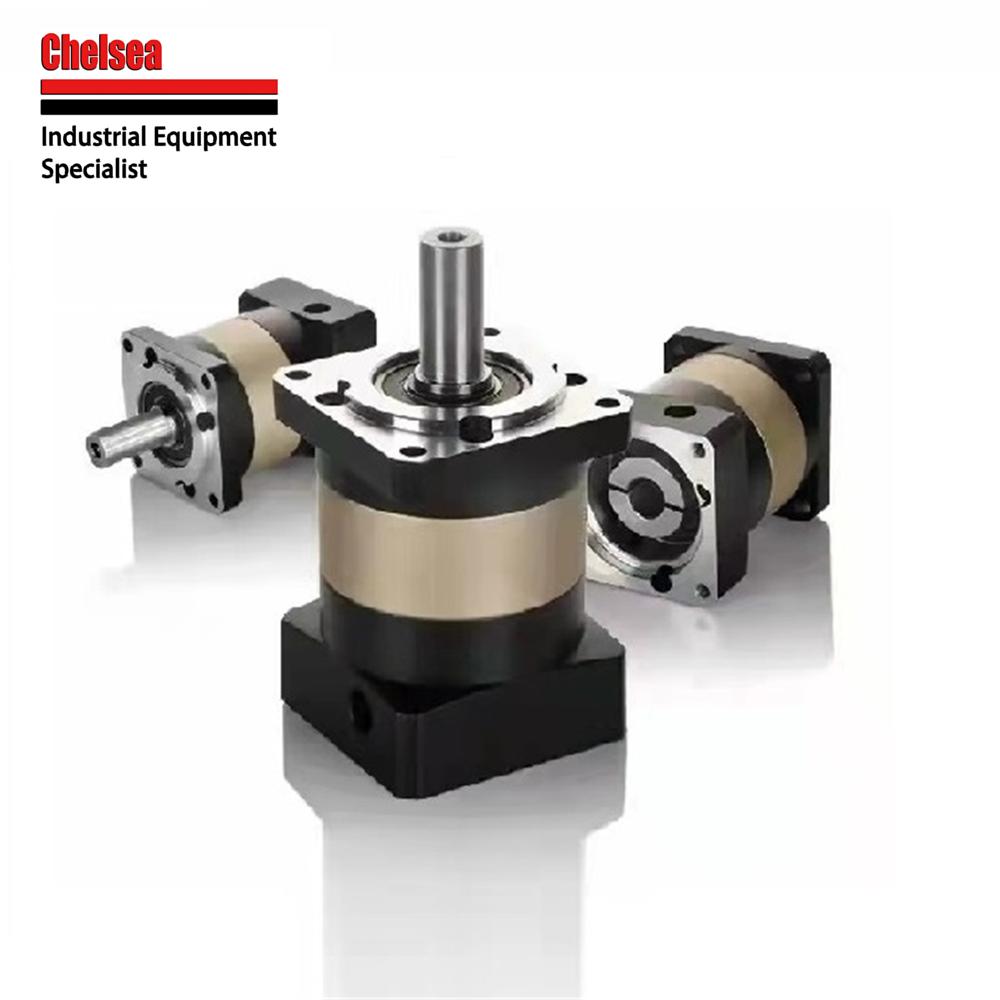

Robust PLF90 L1 Gearbox Solution for Automation, Robotics & Heavy Machinery

Robust PLF90 L1 Gearbox Solution for Automation, Robotics & Heavy Machinery

Name: Robust PLF90 L1 Gearbox Solution for Automation, Robotics & Heavy Machinery
Brand: Chenyue (Jiangsu) Technology Co., Ltd.
Price: 40.99 USD
Availability: InStock

40.99 USD ($)/Piece

Get a Price/Quote

Product Details:

Usage Industrial
Gear Type Spur Gears
Size 180.25*130*130
Processing Type Die Casting
Height 130 Millimeter (mm)
Product Type PLF90 L1 Planetary gearboxes
Gearing Arrangement Planetary
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Robust PLF90 L1 Gearbox Solution for Automation, Robotics & Heavy Machinery Price And Quantity

Price Range 40.99 - 55.99 USD ($)/Piece
Minimum Order Quantity 1 Piece
Price 40.99 USD ($)/Piece

Robust PLF90 L1 Gearbox Solution for Automation, Robotics & Heavy Machinery Product Specifications

Color See Picture
Output Torque 142 N-m
Output Speed 875 RPM
Processing Type Die Casting
Weight 3.81 Kilograms (kg)
Length 180.25 Millimeter (mm)
Input Speed 3500 RPM
Width 130 Millimeter (mm)
Height 130 Millimeter (mm)
Size 180.25*130*130
Usage Industrial
Product Type PLF90 L1 Planetary gearboxes
Efficiency High
Gear Type Spur Gears
Gearing Arrangement Planetary

Robust PLF90 L1 Gearbox Solution for Automation, Robotics & Heavy Machinery Trade Information

FOB Port Qingdao,Shanghai,Lianyungang
Payment Terms Delivery Point (DP), Telegraphic Transfer (T/T), Letter of Credit (L/C), Paypal
Supply Ability 30000 Piece Per Month
Delivery Time 3 Days
Sample Available No
Sample Policy Contact us for information regarding our sample policy
Packaging Details Carton
Main Export Market(s) Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
Main Domestic Market All India
Certifications RoHS/CE/IAF/CNAS/ISO9001/ISO45001/ISO14001

Product Description

Key Features:

Space-saving lightweight construction for seamless system integration
Exceptional positioning accuracy with minimized backlash
Heavy-duty design featuring case-hardened alloy steel gear components
Precision flange mounting interface for vibration-resistant installation
Optimized gear meshing delivers consistent high-torque output
Advanced power transfer efficiency exceeding 95%
IP65-rated protective enclosure against environmental contaminants

Key Benefits:

Maximized energy conversion efficiency for automated industrial systems
Extended operational lifespan under extreme working conditions
Maintenance-free operation with superior reliability
Exceptional load-bearing capability for heavy-duty applications
Universal adaptation to diverse motor types and mechanical configurations

Tip:

The Gear Planetary Reducer is warranted for one year.
The starting date of the warranty period is subject to the date of the product invoice, please present the invoice when repairing.
Beyond the warranty period or does not belong to the free warranty products, the company's maintenance center is still dedicated to serve you.
If you need special customization or have requirements for delivery time, please contact Sales manager

email: chenyuetech@gmail.com, Wattsapp: +86 132 7517 8089

Engineered for Industrial Excellence

The PLF90 L1 Gearbox Solution sets a new standard for durability and efficiency in automation, robotics, and heavy machinery sectors. The planetary gearing system, paired with high-quality spur gears and die-cast processing, results in a robust and reliable gearbox ready to handle demanding tasks and continuous operation.

Compact Yet Powerful Design

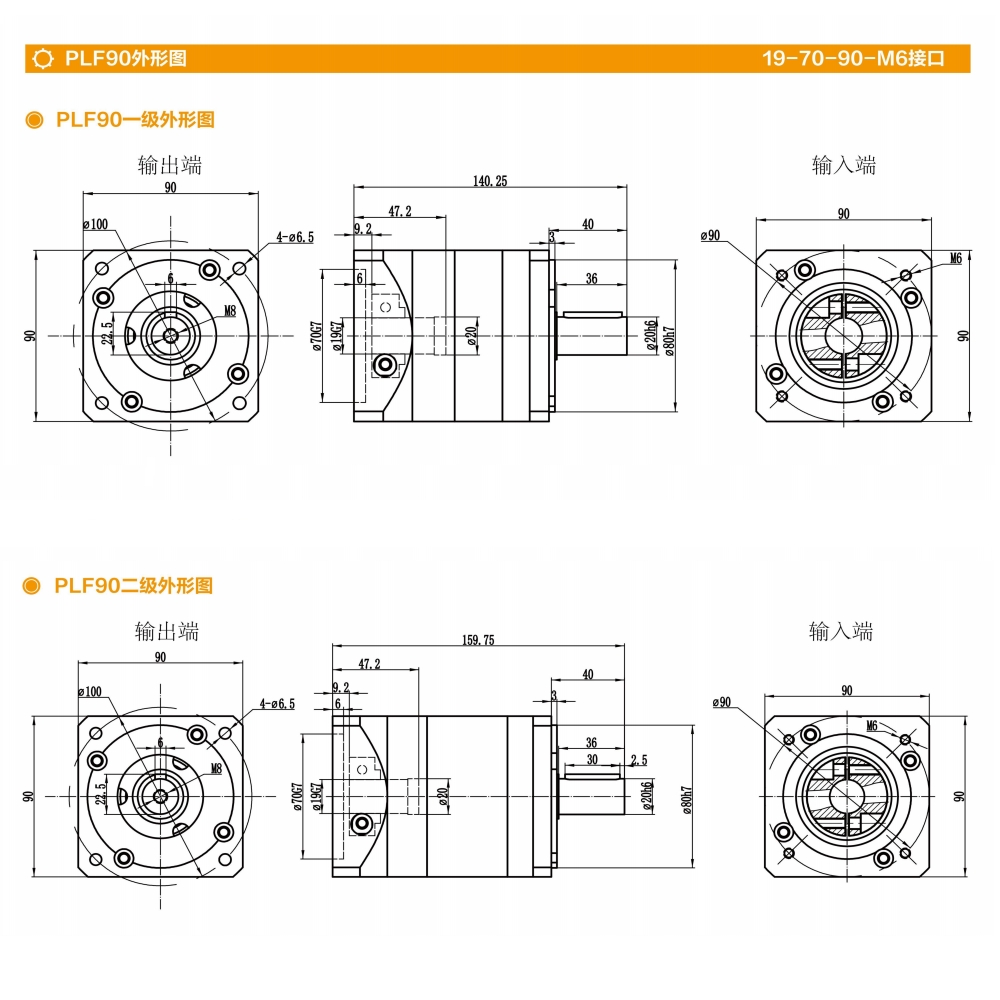

Despite its powerful performance, the gearbox maintains a compact profile, with dimensions of 180.25 mm by 130 mm by 130 mm and a manageable weight of 3.81 kg. This size makes it adaptable for integration into various industrial environments without compromising on output torque or efficiency.

FAQ's of Robust PLF90 L1 Gearbox Solution for Automation, Robotics & Heavy Machinery:

Q: How is the PLF90 L1 Gearbox installed in industrial applications?

A: The PLF90 L1 Gearbox is designed for straightforward integration into automation, robotics, and heavy machinery systems. Its standardized dimensions and robust mounting features allow for easy installation, following typical industrial gearbox protocols.

Q: What makes the PLF90 L1 Gearbox suitable for heavy-duty use?

A: The PLF90 L1 Gearbox features a die-cast construction and a planetary spur gear arrangement, delivering high output torque (142 N-m) and efficiency. This makes it ideal for demanding, continuous applications commonly found in industrial settings.

Q: When should this gearbox solution be considered for replacement or upgrading?

A: Consider choosing the PLF90 L1 Gearbox when upgrading to systems demanding high efficiency, greater output torque, or more compact gearboxes. It is also ideal when longevity and minimal maintenance are required due to its robust design.

Q: Where is the PLF90 L1 Gearbox manufactured and supplied from?

A: This gearbox is manufactured and supplied by reputable providers in China, ensuring a high standard of production and global availability for industrial clients.

Q: What is the process behind constructing the PLF90 L1 Gearbox?

A: The gearbox is built utilizing precision die casting and stringent quality controls, ensuring resilience and consistent performance in challenging environments.

Q: How does the PLF90 L1 Gearbox benefit industrial operations?

A: By delivering high output torque at an efficient output speed, this gearbox helps industrial systems achieve smoother operation, improved load handling, and reliable long-term service, optimizing productivity and reducing downtime.
